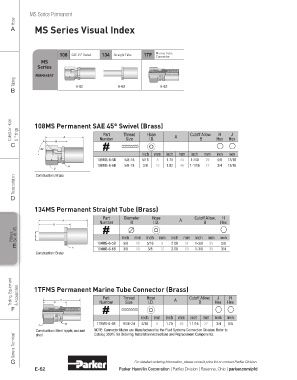

Page 320 - Parker - Cat 4660

MS Series Permanent
Hose
A MS Series Visual Index

Marine Tube
108 SAE 45° Swivel 134 Straight Tube 1TF Connector
MS
Series

PERMANENT
Tubing
B E-62 E-62 E-62

Coiled Air Hose & Fittings 108MS Permanent SAE 45° Swivel (Brass) A Cutoff Allow. H J

Thread
Part
Hose
C Number Size I.D. B Hex Hex
inch mm inch mm inch mm inch inch
108MS-6-5B 5/8-18 5/16 8 1.75 45 1-1/8 29 5/8 13/16
108MS-6-6B 5/8-18 3/8 10 1.82 46 1-1/16 27 3/4 13/16

Transportation Construction: Brass

D

134MS Permanent Straight Tube (Brass)
Part Diameter Hose Cutoff Allow. H
Number R I.D. A B Hex

Fittings Series MS R inch mm inch mm inch mm inch mm inch

E 134MS-6-5B 3/8 10 5/16 8 2.00 51 1-3/8 35 5/8
134MS-6-6B 3/8 10 3/8 10 2.08 53 1-3/8 35 3/4
Construction: Brass

Tooling, Equipment & Accessories 1TFMS Permanent Marine Tube Connector (Brass) Cutoff Allow. J H

Part
Hose
Thread
A
F Number Size I.D. B Hex Hex
inch mm inch mm inch mm inch inch
J 1TFMS-6-5B 9/16-24 5/16 8 1.70 43 1 1/16 27 3/4 5/8
Construction: Steel nipple, nut and NOTE: Connector Mates are Manufactured by the Fluid Systems Connection Division. Refer to
Catalog 3501E for Ordering, Installation Instructions and Replacement Components.
shell.
General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
E-62 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
