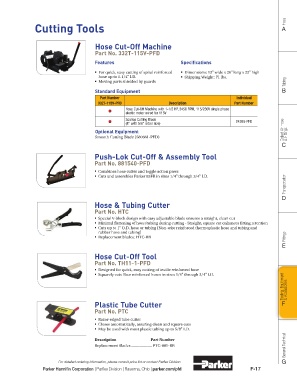

Page 341 - Parker - Cat 4660

Cutting Tools A Hose

Hose Cut-Off Machine
Part No. 332T-115V-PFD
Features Specifications

ƒ For quick, easy cutting of spiral reinforced ƒ Dimensions: 13" wide x 26" long x 22" high
hose up to 1-1/4" I.D. ƒ Shipping Weight: 71 lbs.
ƒ Moving parts shielded by guards Tubing

Standard Equipment B
Part Number Individual
332T-115V-PFD Description Part Number
Hose Cut-Off Machine with 1-1/2 HP, 3450 RPM, 115/230V single phase
Ä
electic motor wired for 115V
Scallop Cutting Blade
Ä (8" with 5/8" arbor size) 24398-PFD
Optional Equipment Coiled Air Hose
Smooth Cutting Blade (580661-PFD) & Fittings
C

Push-Lok Cut-Off & Assembly Tool
Part No. 881540-PFD

ƒ Combines hose cutter and toggle action press
ƒ Cuts and assembles Parker 83FR in sizes 1/4" through 3/4" I.D.
Transportation

D
Hose & Tubing Cutter
Part No. HTC
ƒ Special V-block design with easy adjustable blade ensures a straight, clean cut
ƒ Minimal flattening of hose/tubing during cutting - Straight, square cut enhances fitting retention
ƒ Cuts up to 1" O.D. hose or tubing (Non-wire reinforced thermoplastic hose and tubing and
rubber hose and tubing)
ƒ Replacement blades: HTC-RB Fittings
E

Hose Cut-Off Tool
Part No. TH11-1-PFD
ƒ Designed for quick, easy cutting of textile reinforced hose
Tooling, Equipment & Accessories
ƒ Squarely cuts fiber reinforced hoses in sizes 1/4" through 3/4" I.D.

Plastic Tube Cutter F
Part No. PTC

ƒ Razor-edged tube cutter
ƒ Closes automatically, assuring clean and square cuts
ƒ May be used with most plastic tubing up to 5/8" I.D.

Description Part Number
Replacement Blades .....................PTC-001-RB General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
