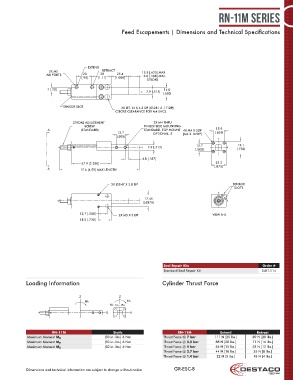

Page 8 - Destaco - Gripper, Rotates, Slides

rn-11m Series

Feed Escapements | Dimensions and Technical Specifications

EXTEND
2X M5 RETRACT 15.9 [.625] MAX.
AIR PORTS 23 28 25.4 5.0 [.188] MIN.
[.90] [1.11] [1.000]
STROKE
7 [.28] 14.0
L C 7.9 [.313]
[.550]
SENSOR SLOT 2X Ø7.14 X 4.3 DP [Ø.281 X .17 DP]
C’BORE CLEARANCE FOR M4 SHCS.

STROKE ADJUSTMENT 2X M4 THRU
SCREW FINGER SIDE MOUNTING
A (STANDARD) STANDARD. TOP MOUNT 4X M4 X 5DP 15.9
12.7 OPTIONAL -T [M4 X .22DP] [.625]
[.500]
L C
L C 7.9 [.313] 12.7 L C 19.1
[.500] [.750]
4.8 [.187]
57.9 [2.280] 22.2
[.875]
A 116 [4.59] MAX LENGTH

2X Ø3H7 X 3.8 DP SENSOR
SLOTS
L C
17.46
L C L C
[.6875]
12.7 [.500]
2X M5 X 5 DP VIEW A-A
18.5 [.730]

Seal Repair Kits Order #
Standard Seal Repair Kit SLKT-114

Loading Information Cylinder Thrust Force

Z Z
MY MX
MZ
X Y

RN-11M Static RN-11M Extend Retract
Maximum Moment Mx [50 in.-lbs.] 6 Nm Thrust Force @ 7 bar 111 N [25 lbs.] 89 N [20 lbs.]
Maximum Moment My [50 in.-lbs.] 6 Nm Thrust Force @ 5.5 bar 88 N [20 lbs.] 71 N [16 lbs.]
Maximum Moment Mz [50 in.-lbs.] 6 Nm Thrust Force @ 4 bar 66 N [15 lbs.] 53 N [12 lbs.]
Thrust Force @ 2.7 bar 44 N [10 lbs.] 35 N [8 lbs.]
Thrust Force @ 1.4 bar 22 N [5 lbs.] 18 N [4 lbs.]

Dimensions and technical information are subject to change without notice GR-ESC-8
