Page 277 - Brass, Composite and Thermoplastic Fittings and Valves

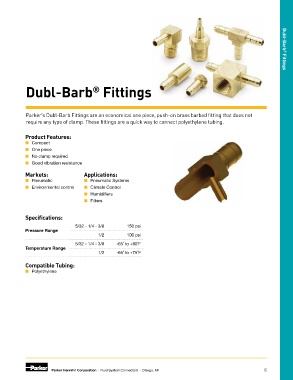

Dubl-Barb Fittings Dubl-Barb ® Fittings
®

Parker’s Dubl-Barb Fittings are an economical one piece, push-on brass barbed fitting that does not
require any type of clamp. These fittings are a quick way to connect polyethylene tubing.

Product Features:
■ Compact
■ One piece
■ No clamp required
■ Good vibration resistance
Markets: Applications:
■ Pneumatic ■ Pneumatic Systems
■ Environmental control ■ Climate Control
■ Humidifiers
■ Filters

Specifications:
5/32 - 1/4 - 3/8 150 psi
Pressure Range
1/2 100 psi

5/32 - 1/4 - 3/8 -65˚ to +90˚F
Temperature Range
1/2 -65˚ to +75˚F

Compatible Tubing:
■ Polyethylene

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI I5
