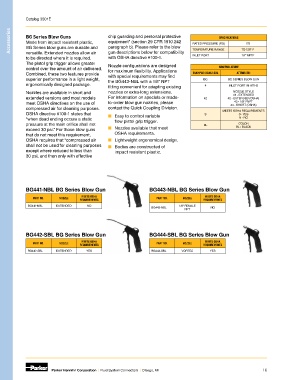

Page 384 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Accessories BG Series Blow Guns chip guarding and personal protective RATED PRESSURE (PSI) TO 120° F
SPECIFICATIONS
equipment” (section 29 CFR 1910.242
Made from impact resistant plastic,
175
paragraph b). Please refer to the blow
BG Series blow guns are durable and
TEMPERATURE RANGE
versatile. Extended nozzles allow air
with OSHA directive #100-1.
to be directed where it is required. gun descriptions below for compatibility INLET PORT 1/4” NPTF
The pistol grip trigger allows greater Nozzle configurations are designed
control over the amount of air delivered. for maximum flexibility. Applications NOMENCLATURE
Combined, these two features provide with special requirements may find EXAMPLE: BG442-SBL ATTRIBUTE:
superior performance in a light weight, the BG443-NBL with a 1/8” NPT BG BG SERIES BLOW GUN
ergonomically designed package. 4 INLET PORT IN 16THS
fitting convenient for adapting existing
Nozzles are available in short and nozzles or extra-long extensions. NOZZLE STYLE
41 - EXTENDED
extended versions and most models For information on specials or made- 42 42 - EXTENDED (OSHA)
43 - 1/8" FNPT
meet OSHA directives on the use of to-order blow gun nozzles, please 44 - SHORT (OSHA)
compressed air for cleaning purposes. contact the Quick Coupling Division. MEETS OSHA REQUIREMENTS
OSHA directive #100-1 states that Easy to control variable S S - YES
“when dead ending occurs a static ■ flow pistol grip trigger. N - NO
pressure at the main orifice shall not BL BL - BLACK
COLOR
exceed 30 psi.” For those blow guns ■ Nozzles available that meet
that do not meet this requirement, OSHA requirements.
OSHA requires that “compressed air ■ Lightweight ergonomical design.
shall not be used for cleaning purposes ■ Bodies are constructed of
except where reduced to less than impact resistant plastic.
30 psi, and then only with effective

BG441-NBL BG Series Blow Gun BG443-NBL BG Series Blow Gun
PART NO. NOZZLE MEETS OSHA PART NO. NOZZLE MEETS OSHA
REQUIREMENTS REQUIREMENTS
BG441-NBL EXTENDED NO 1/8” FEMALE
BG443-NBL NO
NPT

BG442-SBL BG Series Blow Gun BG444-SBL BG Series Blow Gun

PART NO. NOZZLE MEETS OSHA PART NO. NOZZLE MEETS OSHA
REQUIREMENTS REQUIREMENTS
BG442-SBL EXTENDED YES BG444-SBL VORTEC YES

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI L6
