polyflex ®
Catalog 4900

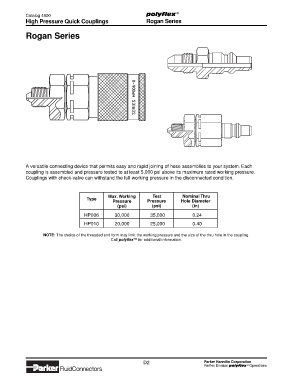

High Pressure Quick Couplings Rogan Series

Rogan Series

A versatile connecting device that permits easy and rapid joining of hose assemblies to your system. Each
coupling is assembled and pressure tested to at least 5,000 psi above its maximum rated working pressure.
Couplings with check-valve can withstand the full working pressure in the disconnected condition.

Max. Working Test Nominal Thru
Type
Pressure Pressure Hole Diameter
(psi) (psi) (in)
HP006 30,000 35,000 0.24
HP010 20,000 25,000 0.40

NOTE: The choice of the threaded end form may limit the working pressure and the size of the thru hole in the coupling.
Call polyflex™ for additional information.

D2 Parker Hannifin Corporation
Parflex Division polyflex Operations
®
FluidConnectors
