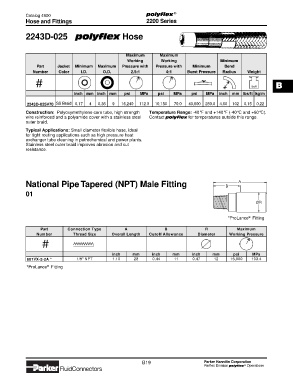

Page 38 - Parker - Polyflex Hose Products (Ultra High Pressure Thermoplastic Hose)

polyflex ®
Catalog 4900
Hose and Fittings 2200 Series

2243D-025 polyflex Hose

Maximum Maximum
Working Working Minimum
Part Jacket Minimum Maximum Pressure with Pressure with Minimum Bend
Number Color I.D. O.D. 2.5:1 4:1 Burst Pressure Radius Weight

B
inch mm inch mm psi MPa psi MPa psi MPa inch mm lbs/ft kg/m

2243D-025V70 SS Braid 0.17 4 0.36 9 16,240 112.0 10,150 70.0 40,600 280.0 4.00 102 0.15 0.22
Construction: Polyoxymethylene core tube, high strength Temperature Range: -40°F and +140°F (-40°C and +60°C).
wire reinforced and a polyamide cover with a stainless steel Contact polyflex for temperatures outside this range.
outer braid.
Typical Applications: Small diameter flexible hose, ideal
for tight routing applications such as high pressure heat
exchanger tube cleaning in petrochemical and power plants.
Stainless steel outer braid improves abrasion and cut
resistance.

National Pipe Tapered (NPT) Male Fitting B A
01

ØR

®
*ProLance Fitting
Part Connection Type A B R Maximum
Number Thread Size Overall Length Cutoff Allowance Diameter Working Pressure

inch mm inch mm inch mm psi MPa
601VX-2-2A * 1/8" NPT 1.10 28 0.44 11 0.47 12 15,000 103.4
®
*ProLance Fitting

B19 Parker Hannifin Corporation
Parflex Division polyflex Operations
®
