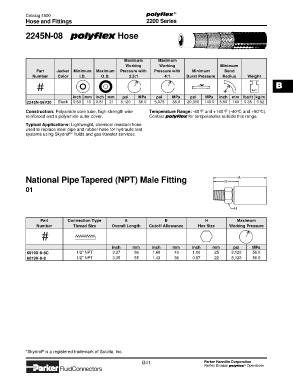

Page 60 - Parker - Polyflex Hose Products (Ultra High Pressure Thermoplastic Hose)

polyflex ®
Catalog 4900
Hose and Fittings 2200 Series

2245N-08 polyflex Hose

Maximum Maximum
Working Working Minimum
Part Jacket Minimum Maximum Pressure with Pressure with Minimum Bend
Number Color I.D. O.D. 2.5:1 4:1 Burst Pressure Radius Weight
B

inch mm inch mm psi MPa psi MPa psi MPa inch mm lbs/ft kg/m
2245N-08V30 Black 0.50 13 0.81 21 8,120 56.0 5,075 35.0 20,300 140.0 5.50 140 0.35 0.52
Construction: Polyamide core tube, high strength wire Temperature Range: -40°F and +140°F (-40°C and +60°C).
reinforced and a polyamide outer cover. Contact polyflex for temperatures outside this range.
Typical Applications: Lightweight, chemical resistant hose
used to replace steel pipe and rubber hose for hydraulic test
®
systems using Skydrol * fluids and gas transfer services.

National Pipe Tapered (NPT) Male Fitting B A

01

H

Part Connection Type A B H Maximum
Number Thread Size Overall Length Cutoff Allowance Hex Size Working Pressure

inch mm inch mm inch mm psi MPa
6019X-8-8C 1/2" NPT 3.37 86 1.68 43 1.00 25 8,120 56.0
6019X-8-8 1/2" NPT 3.35 85 1.43 36 0.87 22 8,120 56.0

®
*Skydrol is a registered trademark of Solutia, Inc.
