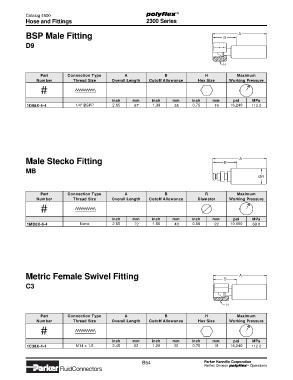

Page 73 - Parker - Polyflex Hose Products (Ultra High Pressure Thermoplastic Hose)

polyflex ®
Catalog 4900
Hose and Fittings 2300 Series

BSP Male Fitting B A

D9

H

Part Connection Type A B H Maximum
Number Thread Size Overall Length Cutoff Allowance Hex Size Working Pressure

inch mm inch mm inch mm psi MPa
1D98X-4-4 1/4" BSPP 2.65 67 1.39 35 0.75 19 16,240 112.0

Male Stecko Fitting B A
MB
ØR

Part Connection Type A B R Maximum
Number Thread Size Overall Length Cutoff Allowance Diameter Working Pressure

inch mm inch mm inch mm psi MPa
1MB8X-6-4 None 2.85 72 1.58 40 0.86 22 10,000 69.0

Metric Female Swivel Fitting B A
C3

H
Part Connection Type A B H Maximum
Number Thread Size Overall Length Cutoff Allowance Hex Size Working Pressure

inch mm inch mm inch mm psi MPa
1C38X-4-4 M14 x 1.5 2.45 62 1.20 30 0.75 19 16,240 112.0
