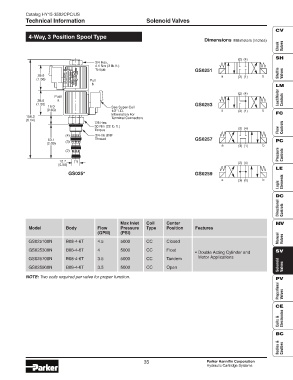

Page 37 - Parker - Hydraulic Cartidge System

Catalog HY15-3502CPC/US
Technical Information Solenoid Valves

CV
4-Way, 3 Position Spool Type
Dimensions Millimeters (Inches)
Check Valves

SH
(2) (4)
3/4 Hex.
4.1 Nm (3 lb. ft.)
Torque GS0251
39.6 a (3) (1) b Shuttle Valves
(1.56) MADEINU.S.A. PAT.XXXXXXX CCX XXX H XXVDC XXW Pull
b LM

(2) (4)
Push Load/Motor
39.6 a Controls
(1.56) GS0253
16.0 See Super Coil
(0.63) 1/2" I.D. a (3) (1) b
Information For FC
156.0 Terminal Connectors
(6.14)
7/8 Hex.
30 Nm (22 lb. ft.) Controls
Torque (2) (4) Flow
(4) 3/4-16 UNF
53.1 Thread GS0257 PC
(2.09) (3)
a (3) (1) b
Pressure Controls
(2)
12.7 (1)
(0.50) (2) (4)
LE
GS025* GS0259
a (3) (1) b Elements
Logic

DC
Directional Controls

Max Inlet Coil Center MV
Model Body Flow Pressure Type Position Features
(GPM) (PSI)
GS025100N B08-4-6T 4.5 5000 CC Closed Manual Valves
GS025300N B08-4-6T 4 5000 CC Float SV
• Double Acting Cylinder and
GS025700N B08-4-6T 3.5 5000 CC Tandem Motor Applications
Solenoid
GS025900N B08-4-6T 3.5 5000 CC Open Valves

NOTE: Two coils required per valve for proper function. PV
Proportional Valves

CE

Coils & Electronics

BC

Bodies & Cavities

35 Parker Hannifin Corporation
