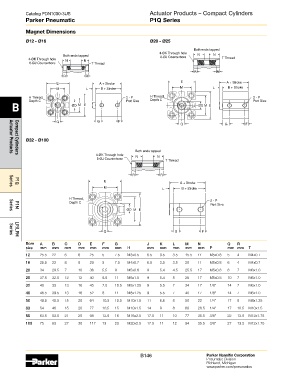

Catalog PDN1000-3US Actuator Products – Compact Cylinders
Parker Pneumatic P1Q Series

Magnet Dimensions

Ø12 - Ø16 Ø20 - Ø25
Both ends tapped
4-ØK Through hole
Both ends tapped 8-ØJ Counterbore N N
4-ØK Through hole N N T Thread
8-ØJ Counterbore T Thread
R R
R R
E A + Stroke
E A + Stroke
M L B + Stroke M L B + Stroke
H Thread, 2 - P H Thread, 2 - P
Depth C
Port Size
Port Size
Depth C
B ØD M E ØD M E
Q G F
Q G F

Ø32 - Ø100

Both ends tapped
4-ØK Through hole N N
Actuator Products
Compact Cylinders
8-ØJ Counterbore
T Thread
R R
E A + Stroke
P1Q
M L B + Stroke
Series
H Thread, 2 - P
Depth C
Port Size
ØD M E
P1M
Series

Q G F
Series
LP/LPM
Bore A B C D E F G J K L M N Q R
size mm mm mm mm mm mm mm H mm mm mm mm mm P mm mm T
12 25.5 22 6 6 25 5 7.5 M3x0.5 6.5 3.5 3.5 15.5 11 M5x0.8 5 4 M4x0.7
16 25.5 22 8 8 29 5 7.5 M4x0.7 6.5 3.5 3.5 20 11 M5x0.8 6 4 M4x0.7
20 34 29.5 7 10 36 5.5 9 M5x0.8 9 5.4 4.5 25.5 17 M5x0.8 8 7 M6x1.0
25 37.5 32.5 12 12 40 5.5 11 M6x1.0 9 5.4 5 28 17 M5x0.8 10 7 M6x1.0
32 40 33 13 16 45 7.5 10.5 M8x1.25 9 5.5 7 34 17 1/8" 14 7 M6x1.0
40 46.5 39.5 13 16 52 8 11 M8x1.25 9 5.5 7 40 17 1/8" 14 7 M6x1.0
50 48.5 40.5 15 20 64 10.5 10.5 M10x1.5 11 6.6 8 50 22 1/4" 17 8 M8x1.25
63 54 46 15 20 77 10.5 15 M10x1.5 14 9 8 60 28.5 1/4" 17 10.5 M10x1.5
80 63.5 53.5 21 25 98 12.5 16 M16x2.0 17.5 11 10 77 35.5 3/8" 22 13.5 M12x1.75
100 75 63 27 30 117 13 23 M20x2.5 17.5 11 12 94 35.5 3/8" 27 13.5 M12x1.75
