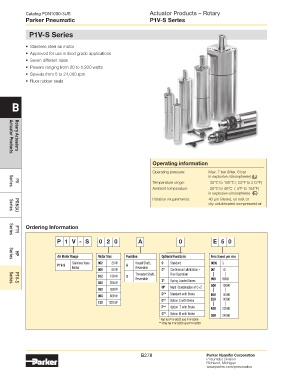

Catalog PDN1000-3US Actuator Products – Rotary
Parker Pneumatic P1V-S Series

P1V-S Series

• Stainless steel air motor
• Approved for use in food grade applications
• Seven different sizes
• Powers ranging from 20 to 1,200 watts
• Speeds from 5 to 24,000 rpm
• Fluor rubber seals

B

Rotary Actuators
Actuator Products
Operating information
Operating pressure: Max. 7 bar (Max. 6 bar
in explosive atmospheres)
Temperature range: -30°C to 100°C (-22°F to 212°F)
PV
Ambient temperature: -20°C to 40°C (-4°F to 104°F)
Series
in explosive atmospheres
Filtration requirements: 40 µm filtered, oil mist or
dry unlubricated compressed air
Series
PRN(A)
Ordering Information

PTR
Series
P 1 V - S 0 2 0 A 0 E 5 0

Air Motor Range Motor Size Function Optional Functions Free Speed per min
HP
Series
Stainless Vane 002 20 W Keyed Shaft, 0 Standard 0005 5
P1V-S A
Motor Reversible
008 80 W C* Continuous Lubrication - 001 10
Threaded Shaft, Free Operation
012 120 W D Reversible 999 9990
020 200 W Z* Spring Loaded Vanes A00 10000
Series
P1V-S
030 300 W M* Multi: Combination of C+Z
D** Standard with Brake E00 14000
060 600 W
120 1200 W E** Option C with Brake E50 14500
F** Option Z with Brake N00 22000
G** Option M with Brake Q00 24000
* Not for P1V-S002 and P1V-S008
** Only for P1V-S020 and P1V-S030
