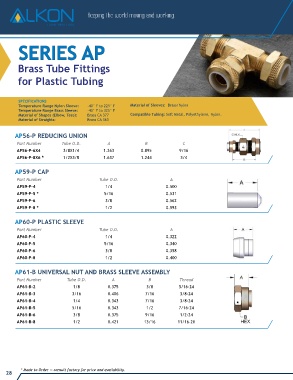

Page 29 - Alkon - 2010 Fittings Product Catalog

Keeping the world moving and working.

SERIES AP

Brass Tube Fittings

for Plastic Tubing

SPECIFICATIONS
Temperature Range Nylon Sleeve: -40° F to 225° F Material of Sleeves: Brass/Nylon
Temperature Range Brass Sleeve: -40° F to 325° F
Material of Shapes (Elbow, Tees): Brass CA 377 Compatible Tubing: Soft Metal, Polyethylene, Nylon.
Material of Straights: Brass CA 360

AP56-P REDUCING UNION

Part Number Tube O.D. A B C
AP56-P-6X4 3/8X1/4 1.263 0.895 9/16
AP56-P-8X6 * 1/2X3/8 1.637 1.244 3/4

AP59-P CAP
Part Number Tube O.D. A
AP59-P-4 1/4 0.500
AP59-P-5 * 5/16 0.531
AP59-P-6 3/8 0.562
AP59-P-8 * 1/2 0.593

AP60-P PLASTIC SLEEVE
Part Number Tube O.D. A
AP60-P-4 1/4 0.322
AP60-P-5 5/16 0.340
AP60-P-6 3/8 0.358
AP60-P-8 1/2 0.400

AP61-B UNIVERSAL NUT AND BRASS SLEEVE ASSEMBLY
Part Number Tube O.D. A B Thread
AP61-B-2 1/8 0.375 3/8 5/16-24
AP61-B-3 3/16 0.406 7/16 3/8-24
AP61-B-4 1/4 0.343 7/16 3/8-24
AP61-B-5 5/16 0.343 1/2 7/16-24
AP61-B-6 3/8 0.375 9/16 1/2-24
AP61-B-8 1/2 0.421 13/16 11/16-20

28 * Made to Order -- consult factory for price and availability.
