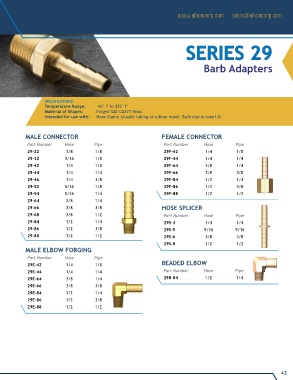

Page 44 - Alkon - 2010 Fittings Product Catalog

www.alkoncorp.com sales@alkoncorp.com

SERIES 29

Barb Adapters

SPECIFICATIONS
Temperature Range: -40° F to 325° F
Material of Shapes: Forged SAE CA377 Brass
Intended for use with: Hose Clamp (plastic tubing or rubber hose). Barb size is hose I.D.

MALE CONNECTOR FEMALE CONNECTOR
Part Number Hose Pipe Part Number Hose Pipe
29-22 1/8 1/8 29F-42 1/4 1/8
29-32 3/16 1/8 29F-44 1/4 1/4
29-42 1/4 1/8 29F-64 3/8 1/4
29-44 1/4 1/4 29F-66 3/8 3/8
29-46 1/4 3/8 29F-84 1/2 1/4
29-52 5/16 1/8 29F-86 1/2 3/8
29-54 5/16 1/4 29F-88 1/2 1/2
29-64 3/8 1/4
29-66 3/8 3/8 HOSE SPLICER
29-68 3/8 1/2 Part Number Hose Pipe
29-84 1/2 1/4 29S-4 1/4 1/4
29-86 1/2 3/8 29S-5 5/16 5/16
29-88 1/2 1/2 29S-6 3/8 3/8
29S-8 1/2 1/2
MALE ELBOW FORGING
Part Number Hose Pipe
29E-42 1/4 1/8 BEADED ELBOW
29E-44 1/4 1/4 Part Number Hose Pipe
29E-64 3/8 1/4 29B-84 1/2 1/4
29E-66 3/8 3/8
29E-84 1/2 1/4
29E-86 1/2 3/8
29E-88 1/2 1/2
