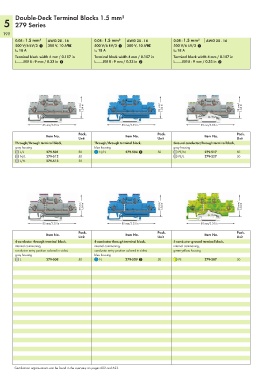

Double-Deck Terminal Blocks 1.5 mm²
5 279 Series
198
0.08 - 1.5 mm² AWG 28 - 16 0.08 - 1.5 mm² AWG 28 - 16 0.08 - 1.5 mm² AWG 28 - 16
500 V/6 kV/3 1 300 V, 10 AU 500 V/6 kV/3 1 300 V, 10 AU 500 V/6 kV/3 1
I N 18 A I N 18 A I N 18 A
Terminal block width 4 mm / 0.157 in Terminal block width 4 mm / 0.157 in Terminal block width 4 mm / 0.157 in
L 8 - 9 mm / 0.33 in 2 L 8 - 9 mm / 0.33 in 2 L 8 - 9 mm / 0.33 in 2

<___ 39 mm/ ___> 1.54 in <___ 39 mm/ ___> 1.54 in <___ 39 mm/ ___> 1.54 in

<_________ 85 mm/3.35 in ___________> <_________ 85 mm/3.35 in ___________> <_________ 85 mm/3.35 in ___________>
Pack. Pack. Pack.
Item No. Item No. Item No.
Unit Unit Unit
Through/through terminal block, Through/through terminal block, Ground conductor/through terminal block,
gray housing blue housing gray housing
L/L 279-501 50 N/N 279-504 3 50 PE/N 279-517 50
N/L 279-512 50 PE/L 279-527 50
L/N 279-513 50

<___ 39 mm/ ___> 1.54 in <___ 39 mm/ ___> 1.54 in <___ 39 mm/ ___> 1.54 in

<_________ 85 mm/3.35 in ___________> <_________ 85 mm/3.35 in ___________> <_________ 85 mm/3.35 in ___________>

Pack. Pack. Pack.
Item No. Unit Item No. Unit Item No. Unit
4-conductor through terminal block, 4-conductor through terminal block, 4-conductor ground terminal block,
internal commoning, internal commoning, internal commoning,
conductor entry position colored in violet, conductor entry position colored in violet, green-yellow housing
gray housing blue housing
L 279-508 50 N 279-509 3 50 PE 279-507 50

Certification organizations can be found in the overview on pages 622 and 623.
