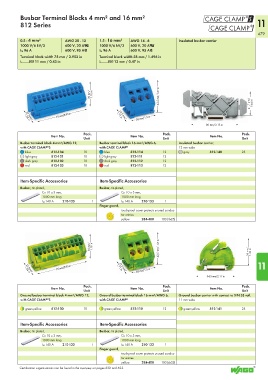

Page 481 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

!

Busbar Terminal Blocks 4 mm² and 16 mm²
812 Series " 11
479
0.5 - 4 mm² AWG 20 - 12 1.5 - 16 mm² AWG 14 - 6 Insulated busbar carrier
1000 V/6 kV/3 600 V, 20 AU 1000 V/6 kV/3 600 V, 20 AU
I N 96 A 600 V, 95 A2 I N 96 A 600 V, 95 A2
Terminal block width 75 mm / 2.953 in Terminal block width 38 mm / 1.496 in
L 11 mm / 0.43 in L 12 mm / 0.47 in

<____ 30 mm/ _____> 1.18 in <___ 42,5 mm/1.67 in ___> 41,7 mm/ 1.64 in

<______________ 75 mm/2.95 in ____________> < > <_ 38 mm/1.5 in __>

1.71 in
43,5 mm/
1.08 in
< 27,5mm/ >
80 mm/3.15 in
Pack. Pack. Pack.
Item No. Item No. Item No.
Unit Unit Unit
Busbar terminal block 4 mm²/AWG 12, Busbar terminal block 16 mm²/AWG 6, Insulated busbar carrier,
with CAGE CLAMP S with CAGE CLAMP ® 12 mm wide
®
blue 812-104 10 blue 812-114 12 gray 812-140 25
light gray 812-101 10 light gray 812-111 12
dark gray 812-102 10 dark gray 812-112 12
red 812-103 10 red 812-113 12
Item-Specific Accessories Item-Specific Accessories
Busbar, tin-plated, Busbar, tin-plated,
Cu 10 x 3 mm, Cu 10 x 3 mm,
1000 mm long 1000 mm long
I N 140 A 210-133 1 I N 140 A 210-133 1
Finger guard,
touchproof cover protects unused conduc-
tor entries
yellow 284-400 100 (4x25)

<____ 30 mm/ _____> 1.18 in <___ 42,5 mm/1.67 in ___> <______ 36 mm/ ______>

<______________ 75 mm/2.95 in ____________> < > <_ 38 mm/1.5 in __> 1.42 in 11

1.71 in
43,5 mm/
1.08 in
< 27,5mm/ >
<______ 54,5 mm/2.11 in ______>
Pack. Pack. Pack.
Item No. Unit Item No. Unit Item No. Unit
Ground busbar terminal block 4 mm²/AWG 12, Ground busbar terminal block 16 mm²/AWG 6, Ground busbar carrier with contact to DIN 35 rail,
with CAGE CLAMP S with CAGE CLAMP ® 11 mm wide
®
green-yellow 812-100 10 green-yellow 812-110 12 green-yellow 812-141 25

Item-Specific Accessories Item-Specific Accessories
Busbar, tin-plated, Busbar, tin-plated,
Cu 10 x 3 mm, Cu 10 x 3 mm,
1000 mm long 1000 mm long
I N 140 A 210-133 1 I N 140 A 210-133 1
Finger guard,
touchproof cover protects unused conduc-
tor entries
yellow 284-400 100 (4x25)
Certification organizations can be found in the overview on pages 622 and 623.
