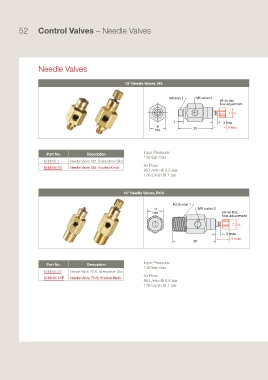

15° Needle Valves, M5

M5 inlet 1 M5 outlet 2
#5-40 thd.
flow adjustment
7 dia.
4 3 max.
11 9 max.
hex. 25

Input Pressure:
Part No. Description
140 bar max.
M-MNV-1 Needle Valve, M5, Screwdriver Slot
Air Flow:
M-MNV-1K Needle Valve, M5, Knurled Knob
85 L/min @ 3.5 bar
170 L/min @ 7 bar

15° Needle Valves, R1/8

R1/8 inlet 1
11 M5 outlet 2
hex. #5-40 thd.
flow adjustment
7 dia.
3 max.
9 max.
30

Input Pressure:
Part No. Description
140 bar max.
M-MNV-1P Needle Valve, R1/8, Screwdriver Slot
Air Flow:
M-MNV-1KP Needle Valve, R1/8, Knurled Knob
85 L/min @ 3.5 bar
170 L/min @ 7 bar
