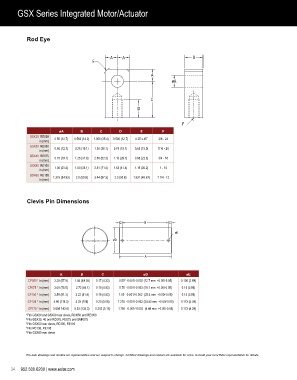

GSX Series Integrated Motor/Actuator

Rod Eye

A A B
E

A
øA

C
D

F
øA B C D E F
GSX20 RE038
in (mm) 0.50 (12.7) 0.560 (14.2) 1.000 (25.4) 0.500 (12.7) 0.25 x 45˚ 3/8 - 24
GSX30 RE050
in (mm) 0.50 (12.7) 0.75 (19.1) 1.50 (38.1) 0.75 (19.1) 0.63 (15.9) 7/16 - 20
GSX40 RE075
in (mm) 0.75 (19.1) 1.25 (31.8) 2.06 (52.3) 1.13 (28.7) 0.88 (22.3) 3/4 - 16
GSX50 RE100 1.00 (25.4) 1.50 (38.1) 2.81 (71.4) 1.63 (41.4) 1.19 (30.2) 1 - 14
in (mm)
GSX60 RE138 1.375 (34.93) 2.0 (50.8) 3.44 (87.3) 2.0 (50.8) 1.837 (46.67) 1 1/4 - 12
in (mm)

Clevis Pin Dimensions

C B C
øE
øD

A

A B C øD øE
CP050 in (mm) 2.28 (57.9) 1.94 (49.28) 0.17 (4.32) 0.50" -0.001/-0.002 (12.7 mm +0.00/-0.05) 0.106 (2.69)
1
CP075 in (mm) 3.09 (78.5) 2.72 (69.1) 0.19 (4.82) 0.75 -0.001/-0.002 (19.1 mm +0.00/-0.05) 0.14 (3.56)
2
3
CP100 in (mm) 3.59 (91.2) 3.22 (81.8) 0.19 (4.82) 1.00 -0.001/-0.002 (25.4 mm +0.00/-0.05) 0.14 (3.56)
CP138 in (mm) 4.66 (118.3) 4.25 (108) 0.20 (5.08) 1.375 -0.001/-0.002 (34.93 mm +0.00/-0.05) 0.173 (4.39)
4
CP175 in (mm) 5.656 143.6) 5.25 (133.3) 0.203 (5.15) 1.750 -0.001/-0.002 (4.44 mm +0.00/-0.05) 0.173 (4.39)
5
1 Fits GSX20 and GSX30 rear clevis, RCI050 and REI050
2 Fits GSX30, 40 and RC075, RE075 and SMR075
3 Fits GSX50 rear clevis, RC100, RE100
4 Fits RC138, RE138
5 Fits GSX60 rear clevis

Pre-sale drawings and models are representative and are subject to change. Certified drawings and models are available for a fee. Consult your local Exlar representative for details.
