P. 25

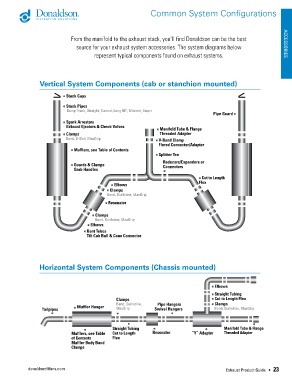

Common System Configurations
From the manifold to the exhaust stack, you’ll find Donaldson can be the best
source for your exhaust system accessories. The system diagrams below ACCESSORIES
represent typical components found on exhaust systems.
Vertical System Components (cab or stanchion mounted)
« Stack Caps
« Stack Pipes
Dump Truck, Straight, Curved, Long 90°, Mitered, Super
Pipe Guard »
« Spark Arrestors
Exhaust Ejectors & Check Valves
« Manifold Tube & Flange
« Clamps Threaded Adapter
Band, U-Bolt, MaxGrip « V-Band Clamp
Flared Connector/Adapter
« Mufflers, see Table of Contents
« Splitter Tee
Reducers/Expanders or
« Guards & Clamps Connectors
Grab Handles
«
« Cut to Length
Flex
« Elbows
« Clamps
Band, Guillotine, MaxGrip
« Resonator
« Clamps
Band, Guillotine, MaxGrip
« Elbows
« Bent Tubes
Tilt Cab Ball & Cone Connector
CONFIGV1.fh8
Horizontal System Components (Chassis mounted)
« Elbows
« Straight Tubing
Clamps « Cut to Length Flex
Band, Guillotine, Pipe Hangers « Clamps
Muffler Hanger
Tailpipes « MaxGrip Swivel Hangers Band, Guillotine, MaxGrip
« « «
«
«
Straight Tubing « « Manifold Tube & Flange
Mufflers, see Table Cut to Length Resonator “Y” Adapter Threaded Adapter
«
CONFIGH1.fh8 of Contents Flex
Muffler Body Band
Clamps
donaldsonfilters.com Exhaust Product Guide • 23
