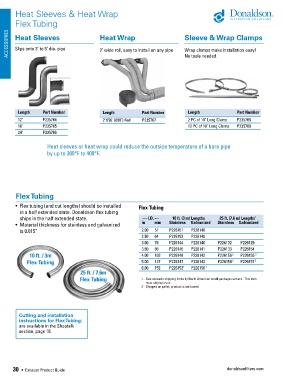

Page 32 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Heat Sleeves & Heat Wrap

Flex Tubing

ACCESSORIES Heat Sleeves Heat Wrap Sleeve & Wrap Clamps

Slips onto 3" to 5" dia. pipe
2" wide roll, easy to install on any pipe
Wrap clamps make installation easy!
No tools needed.

Length Part Number Length Part Number Length Part Number
12" P235764 2"X50' (600") Roll P235767 2 PC of 18" Long Clamp P235768
18" P235765 12 PC of 18" Long Clamp P235769
24" P235766

Heat sleeves or heat wrap could reduce the outside temperature of a bare pipe
by up to 300°F to 400°F.

Flex Tubing

• Flex tubing (and cut lengths) should be installed Flex Tubing
in a half extended state. Donaldson flex tubing
ships in the half extended state. --- I.D. --- 10 ft. (3 m) Lengths 25 ft. (7.6 m) Lengths 1
• Material thickness for stainless and galvanized in mm Stainless Galvanized Stainless Galvanized
is 0.015" 2.00 51 P226151 P226148
2.50 64 P226152 P226149
3.00 76 P226144 P226140 P226132 P226129
3.50 89 P226145 P226141 P226133 P226154
10 ft. / 3m 4.00 102 P226146 P226142 P226156 2 P226155 2
Flex Tubing 5.00 127 P226147 P226143 P226158 2 P226157 2
6.00 152 P226153 1 P226150 1
25 ft. / 7.6m
Flex Tubing 1 - Size exceeds shipping limits by North American small package carriers. This item
must ship by truck.
2 - Shipped on pallet, product is not boxed.

Cutting and installation
instructions for Flex Tubing:
are available in the Shoptalk
section, page 18.
