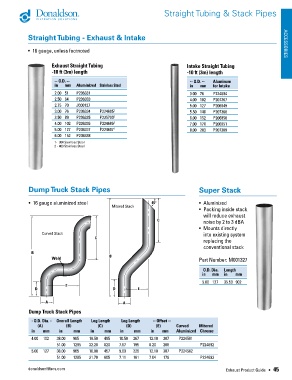

Page 47 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Straight Tubing & Stack Pipes

Straight Tubing - Exhaust & Intake

• 16 gauge, unless footnoted ACCESSORIES

Exhaust Straight Tubing Intake Straight Tubing
-10 ft (3m) length -10 ft (3m) length
-- O.D. -- -- O.D. -- Aluminum
in mm Aluminized Stainless Steel in mm for Intake
2.00 51 P206331 3.00 76 P224684
2.50 64 P206333 4.00 102 P207367
2.75 70 J000127 5.00 127 P206849
3.00 76 P206334 P224685 2 5.50 140 P207368
3.50 89 P206335 P235790 2 6.00 152 P206850
4.00 102 P206336 P224686 2 7.00 178 P206851
5.00 127 P206337 P224687 1 8.00 203 P207369
6.00 152 P206338
1- 304 Stainless Steel
2 - 409 Stainless Steel

Dump Truck Stack Pipes Super Stack

• 16 gauge aluminized steel • Aluminized
Mitered Stack
• Packing inside stack
will reduce exhaust
noise by 2 to 3 dBA
• Mounts directly
Curved Stack into existing system

replacing the
conventional stack

Weld Part Number: M001327

O.D. Dia. Length
in mm in mm
5.00 127 35.50 902

Dump Truck Stack Pipes

- O.D. Dia. - Overall Length Leg Length Leg Length -- Offset --
(A) (B) (C) (D) (E) Curved Mitered
in mm in mm in mm in mm in mm Aluminized Chrome
4.00 102 38.00 965 19.50 495 10.50 267 12.10 307 P224581
51.00 1295 32.28 820 7.67 195 8.20 208 P224692
5.00 127 38.00 965 18.00 457 9.00 229 12.10 307 P224582
51.00 1295 31.70 805 7.11 181 7.04 179 P224693

donaldsonfilters.com Exhaust Product Guide • 45
