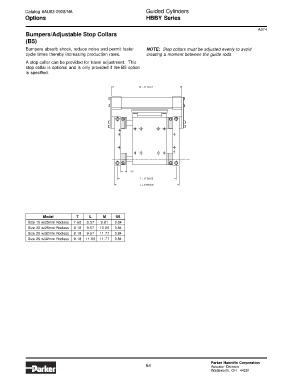

Page 72 - Parker - Rodless Air Cylinders

Catalog #AU03-0928/NA Guided Cylinders
Options HBBY Series

A074
Bumpers/Adjustable Stop Collars
(B5)
Bumpers absorb shock, reduce noise and permit faster NOTE: Stop collars must be adjusted evenly to avoid
cycle times thereby increasing production rates. creating a moment between the guide rods.
A stop collar can be provided for travel adjustment. This
stop collar is optional and is only provided if the B5 option
is specified.

M + STROKE

SS
T + STROKE
L + STROKE

Model T L M SS
Size 15 w/25mm Rodless 7.68 8.57 9.81 0.84
Size 20 w/25mm Rodless 8.18 9.57 10.06 0.84
Size 20 w/32mm Rodless 8.18 9.57 11.77 0.84
Size 25 w/32mm Rodless 9.18 11.06 11.77 0.84
