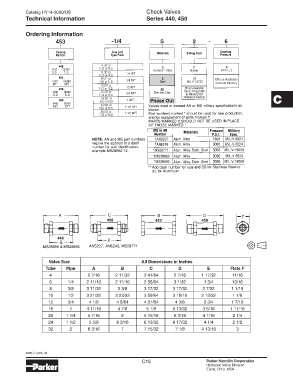

Page 55 - Parker - Republic/Manatrol (Hydraulic and Pneumatic Control Valves)

Catalog HY14-3000/US Check Valves
Technical Information Series 440, 450

Ordering Information

C
Phase Out

Valve Size All Dimensions in Inches
Tube Pipe A B C D E Flats F
4 2 7/16 2 11/32 2 41/64 2 7/16 1 17/32 11/16
6 1/4 2 11/16 2 11/16 2 55/64 3 1/32 1 3/4 13/16
8 3/8 3 11/32 3 3/8 3 17/32 3 17/32 2 7/32 1 1/16
10 1/2 3 21/32 3 23/32 3 59/64 3 15/16 2 13/32 1 1/8
12 3/4 4 1/8 4 5/64 4 31/64 4 3/8 2 3/4 1 7/16
16 1 4 11/16 4 7/8 5 1/8 5 13/32 3 5/16 1 11/16
20 1 1/4 5 7/16 6 5 15/16 6 3/16 4 1/16 2 1/4
24 1 1/2 5 5/8 6 3/16 6 13/32 6 17/32 4 1/4 2 1/2
32 2 6 3/16 7 7 15/32 7 1/8 4 13/16 3

3000-C1.p65, dd
C15 Parker Hannifin Corporation
Hydraulic Valve Division
Elyria, Ohio, USA
