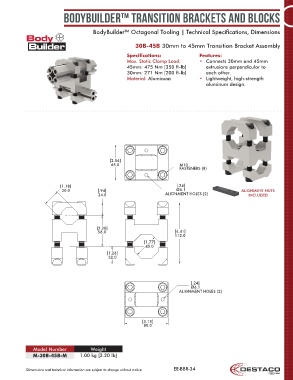

BodyBuilder™ Transition Brackets and Blocks


                                        BodyBuilder™ Octagonal Tooling | Technical Specifications, Dimensions


                                                          30B-45B 30mm to 45mm Transition Bracket Assembly

                                                      Specifications:               Features:
                                                      Max. Static Clamp Load:       •  Connects 30mm and 45mm
                                                      45mm: 475 Nm [350 ft-lb]         extrusions perpendicular to
                                                      30mm: 271 Nm [200 ft-lb]         each other.
                                                      Material: Aluminum            •  Lightweight, high-strength
                                                                                       aluminum design.


















                                               [2.56]
                                                  65.0                      M10
                                                                            FASTENERS (8)



                          [1.18]                                           [.24]
                           30.0           [.94]                            Ø6.1                       ALIGNMENT NUTS
                                          24.0                        ALIGNMENT HOLES (2)                INCLUDED







                                         [2.20]
                                            56.0                          [4.41]
                                                                           112.0

                                                             [1.77]
                                                              45.0
                                              [1.26]
                                              32.0





                                                                                 [.24]
                                                                                 Ø6.1
                                                                            ALIGNMENT HOLES (2)






                                                            [3.15]

                                                             80.0



               Model Number            Weight
               M-30B-45B-M        1.00 kg [2.20 lb]


            Dimensions and technical information are subject to change without notice  EE-BBR-34
