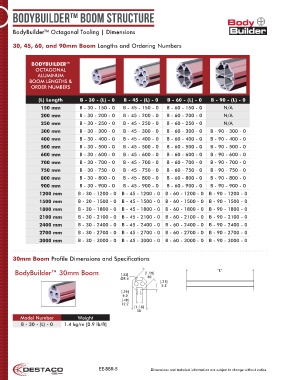

Page 5 - Destaco - BodyBuilder End Effector System

BodyBuilder™ Boom Structure

BodyBuilder™ Octagonal Tooling | Dimensions

30, 45, 60, and 90mm Boom Lengths and Ordering Numbers

BODYBUILDER™
OCTAGONAL
ALUMINUM
BOOM LENGTHS &
ORDER NUMBERS

(L) Length B - 30 - (L) - 0 B - 45 - (L) - 0 B - 60 - (L) - 0 B - 90 - (L) - 0
150 mm B - 30 - 150 - 0 B - 45 - 150 - 0 B - 60 - 150 - 0 N/A
200 mm B - 30 - 200 - 0 B - 45 - 200 - 0 B - 60 - 200 - 0 N/A
250 mm B - 30 - 250 - 0 B - 45 - 250 - 0 B - 60 - 250 - 0 N/A
300 mm B - 30 - 300 - 0 B - 45 - 300 - 0 B - 60 - 300 - 0 B - 90 - 300 - 0
400 mm B - 30 - 400 - 0 B - 45 - 400 - 0 B - 60 - 400 - 0 B - 90 - 400 - 0

500 mm B - 30 - 500 - 0 B - 45 - 500 - 0 B - 60 - 500 - 0 B - 90 - 500 - 0
600 mm B - 30 - 600 - 0 B - 45 - 600 - 0 B - 60 - 600 - 0 B - 90 - 600 - 0
700 mm B - 30 - 700 - 0 B - 45 - 700 - 0 B - 60 - 700 - 0 B - 90 - 700 - 0
750 mm B - 30 - 750 - 0 B - 45 - 750 - 0 B - 60 - 750 - 0 B - 90 - 750 - 0
800 mm B - 30 - 800 - 0 B - 45 - 800 - 0 B - 60 - 800 - 0 B - 90 - 800 - 0
900 mm B - 30 - 900 - 0 B - 45 - 900 - 0 B - 60 - 900 - 0 B - 90 - 900 - 0
1200 mm B - 30 - 1200 - 0 B - 45 - 1200 - 0 B - 60 - 1200 - 0 B - 90 - 1200 - 0
1500 mm B - 30 - 1500 - 0 B - 45 - 1500 - 0 B - 60 - 1500 - 0 B - 90 - 1500 - 0
1800 mm B - 30 - 1800 - 0 B - 45 - 1800 - 0 B - 60 - 1800 - 0 B - 90 - 1800 - 0
2100 mm B - 30 - 2100 - 0 B - 45 - 2100 - 0 B - 60 - 2100 - 0 B - 90 - 2100 - 0
2400 mm B - 30 - 2400 - 0 B - 45 - 2400 - 0 B - 60 - 2400 - 0 B - 90 - 2400 - 0
2700 mm B - 30 - 2700 - 0 B - 45 - 2700 - 0 B - 60 - 2700 - 0 B - 90 - 2700 - 0
3000 mm B - 30 - 3000 - 0 B - 45 - 3000 - 0 B - 60 - 3000 - 0 B - 90 - 3000 - 0

30mm Boom Profile Dimensions and Specifications

BodyBuilder™ 30mm Boom [.33] [1.18] “L”
Ø8.4 30
[.21]
5.3
[.26]
6.5
[.48]
12.2
[1.18]
30
Model Number Weight
B - 30 - (L) - 0 1.4 kg/m [0.9 lb/ft] “L”
[2.36]
60

[.30]
7.6

[.26] [.21]
6.5 5.3
EE-BBR-5 [.48] Dimensions and technical information are subject to change without notice
12.2

“L”
[3.54]
90

[.30]
7.6

[.26] [.21]
6.5 5.3
[.48]
12.2
