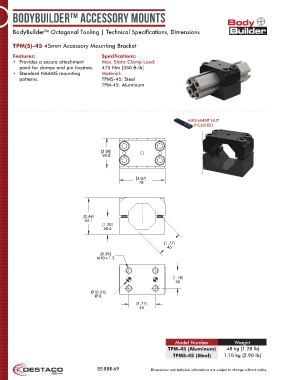

Page 69 - Destaco - BodyBuilder End Effector System

BodyBuilder™ Accessory Mounts

BodyBuilder™ Octagonal Tooling | Technical Specifications, Dimensions

TPM(S)-45 45mm Accessory Mounting Bracket

Features: Specifications:
• Provides a secure attachment Max. Static Clamp Load:
point for clamps and pin locators. 475 Nm [350 ft-lb]
• Standard NAAMS mounting Material:
patterns. TPMS-45: Steel
TPM-45: Aluminum

ALIGNMENT NUT
INCLUDED

[2.00]
50.8

[3.07]
78

[2.44]
62.1
[1.20]
30.6

[1.77]
45
[0.39]
M10 x 1.5

[1.18]
30

Ø [0.31]
Ø 8
[1.77]
45

Model Number Weight
TPM-45 (Aluminum) .48 kg [1.28 lb]
TPMS-45 (Steel) 1.10 kg [2.90 lb]

EE-BBR-69 Dimensions and technical information are subject to change without notice
