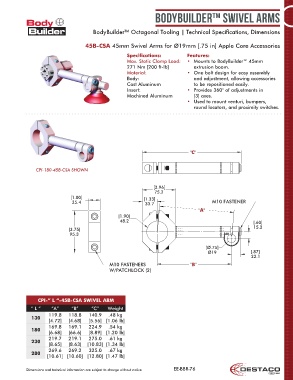

Page 76 - Destaco - BodyBuilder End Effector System

BodyBuilder™ Swivel Arms
45B-CSA 45mm Swivel Arms for Ø19mm [.75 in] Apple Core Accessories
BodyBuilder™ Swivel Arms

BodyBuilder™ Octagonal Tooling | Technical Specifications, Dimensions

45B-CSA 45mm Swivel Arms for Ø19mm [.75 in] Apple Core Accessories

Specifications: Features:
Max. Static Clamp Load: • Mounts to BodyBuilder™ 45mm
271 Nm [200 ft-lb] extrusion boom.
Material: • One bolt design for easy assembly
Body: and adjustment, allowing accessories
Cast Aluminum to be repositioned easily.
Insert: • Provides 360° of adjustments in
Machined Aluminum (3) axes.
• Used to mount venturi, bumpers,
round locators, and proximity switches.

"C"

CPI-180-45B-CSA SHOWN

[2.96]
75.2
[1.00] [1.33]
25.4 33.7 M10 FASTENER
"A"
[1.90]
48.2 [.60]
15.2
[3.75]
95.3

[Ø.75]
Ø19 [.87]
22.1
M10 FASTENERS "B"
W/PATCHLOCK (2)

CPI-” L “-45B-CSA SWIVEL ARM
“ L ” “A” “B” “C” Weight
119.8 118.8 140.9 .48 kg
130
[4.72] [4.68] [5.56] [1.06 lb]
169.8 169.1 224.9 .54 kg
180
[6.68] [66.6] [8.89] [1.20 lb]
219.7 219.1 275.0 .61 kg
230
[8.65] [8.63] [10.83] [1.34 lb]
269.6 269.2 325.0 .67 kg
280
[10.61] [10.60] [12.80] [1.47 lb]

Dimensions and technical information are subject to change without notice EE-BBR-76
