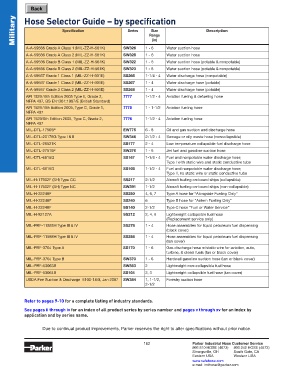

Military Hose Selector Guide – by specification Description

Series
Size
Specification
Range
(in)
A-A-59566 Grade A Class 1 (MIL-ZZ-H-561K) SW326 1 - 6 Water suction hose
A-A-59566 Grade A Class 2 (MIL-ZZ-H-561K) SW328 1 - 6 Water suction hose
A-A-59566 Grade B Class 1 (MIL-ZZ-H-561K) SW322 1 - 6 Water suction hose (potable & nonpotable)
A-A-59566 Grade B Class 2 (MIL-ZZ-H-561K) SW323 1 - 6 Water suction hose (potable & nonpotable)
A-A-59567 Grade 1 Class 1 (MIL-ZZ-H-601E) SS266 1-1/4 - 4 Water discharge hose (nonpotable)
A-A-59567 Grade 1 Class 2 (MIL-ZZ-H-601E) SS267 1 - 4 Water discharge hose (potable)
A-A-59567 Grade 3 Class 2 (MIL-ZZ-H-601E) SS268 1 - 4 Water discharge hose (potable)
API 1529 / 6th Edition 2005 Type E, Grade 2, 7777 1-1/2 - 4 Aviation fueling & defueling hose
NFPA 407, BS EN1361:1997/E (British Standard)
API 1529 / 6th Edition 2005, Type C, Grade 1, 7775 1 - 1-1/2 Aviation fueling hose
NFPA 407
API 1529/6th Edition 2005, Type C, Grade 2, 7776 1-1/2 - 4 Aviation fueling hose
NFPA 407
MIL-DTL-17505F EW775 6 - 8 Oil and gas suction and discharge hose
MIL-DTL-20176G Type I & II SW346 2-1/2 - 4 Sewage or oily waste hose (noncollapsible)
MIL-DTL-26521K SS177 2 - 4 Low temperature collapsible fuel discharge hose
MIL-DTL-27516F SW376 1 - 6 Jet fuel and gasoline suction hose
MIL-DTL-6615G SS167 1-1/4 - 4 Fuel and nonpotable water discharge hose;
Type I with static wire and static conductive tube
MIL-DTL-6615G SS166 1-1/2 - 4 Fuel and nonpotable water discharge hose;
Type II, no static wire or static conductive tube
MIL-H-17902F (SH) Type CC SS217 2-1/2 Aircraft fueling on-board ships (collapsible)
MIL-H-17902F (SH) Type NC SW391 1-1/2 Aircraft fueling on-board ships (non-collapsible)
MIL-H-22240F SS250 4, 6, 7 Type A hose for “Alongside Fueling Only”
MIL-H-22240F SS240 6 Type B hose for “Astern Fueling Only”
MIL-H-22240F SS140 2-1/2 Type C hose “Fuel or Water Service”
MIL-H-82127A SS212 2, 4, 6 Lightweight collapsible fuel hose
(Replacement service only)
MIL-PRF-11588H Type III & IV SS278 1 - 4 Hose assemblies for liquid petroleum fuel dispensing
(black cover)
MIL-PRF-11588H Type III & IV SS258 1 - 4 Hose assemblies for liquid petroleum fuel dispensing
(tan cover)
MIL-PRF-370J Type A SS170 1 - 6 Gas discharge hose w/static wire for aviation, auto,
turbine, & diesel fuels (tan or black cover)
MIL-PRF-370J Type B SW370 1 - 6 Hardwall gasoline suction hose (tan or black cover)
MIL-PRF-53063B SW563 2 Lightweight non-collapsible fuel hose
MIL-PRF-53064B SS164 2, 3 Lightweight collapsible fuel hose (tan cover)
USDA Fire Suction & Discharge 5100-184f, Jan 2007 SW384 1, 1-1/2, Forestry suction hose
2-1/2

Refer to pages 9-10 for a complete listing of industry standards.
See pages ii through iv for an index of all product series by series number and pages v through xv for an index by
application and by series name.

Due to continual product improvements, Parker reserves the right to alter specifications without prior notice.
