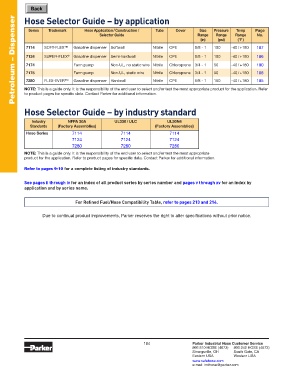

Hose Selector Guide – by application
Petroleum – Dispenser
Series Trademark Hose Application / Construction / Tube Cover Size Pressure Temp Page
Selector Guide Range Range Range No.
(in) (psi) (°F )
7114 SOFT-FLEX™ Gasoline dispenser Softwall Nitrile CPE 5/8 - 1 150 -40 / +180 187
7124 SUPER-FLEX ® Gasoline dispenser Semi-hardwall Nitrile CPE 5/8 - 1 150 -40 / +180 186
7174 Farm pump Non-UL, no static wire Nitrile Chloroprene 3/4 - 1 50 -40 / +180 190
7175 Farm pump Non-UL, static wire Nitrile Chloroprene 3/4 - 1 50 -40 / +180 188
7280 FLEX-EVER™ Gasoline dispenser Hardwall Nitrile CPE 5/8 - 1 150 -40 / +180 185
NOTE: This is a guide only. It is the responsibility of the end user to select and/or test the most appropriate product for the application. Refer
to product pages for specific data. Contact Parker for additional information.

Hose Selector Guide – by industry standard

Industry NFPA 30A UL330 / ULC UL30N4
Standards (Factory Assemblies) (Factory Assemblies)
Hose Series 7114 7114 7114
7124 7124 7124
7280 7280 7280
NOTE: This is a guide only. It is the responsibility of the end user to select and/or test the most appropriate
product for the application. Refer to product pages for specific data. Contact Parker for additional information.

Refer to pages 9-10 for a complete listing of industry standards.

See pages ii through iv for an index of all product series by series number and pages v through xv for an index by
application and by series name.

For Refined Fuel/Hose Compatibility Table, refer to pages 213 and 214.

Due to continual product improvements, Parker reserves the right to alter specifications without prior notice.
