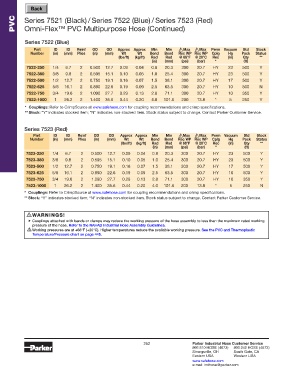

PVC Series 7521 (Black) / Series 7522 (Blue) / Series 7523 (Red)
Omni-Flex™ PVC Multipurpose Hose (Continued)

Series 7522 (Blue)
Part ID ID Reinf OD OD Approx Approx Min Min ! Max ! Max Perm Vacuum Std Stock
Number (in) (mm) Plies (in) (mm) Wt Wt Bend Bend Rec WP Rec WP Cplg Hg Pack Status
(lbs/ft) (kg/ft) Rad Rad @ 68°F @ 20°C Rec (in) Qty **
(in) (mm) (psi) (bar) * (ft)
7522-250 1/4 6.7 2 0.500 12.7 0.09 0.04 0.8 20.3 300 20.7 HY 23 500 Y
7522-380 3/8 9.8 2 0.595 15.1 0.10 0.05 1.0 25.4 300 20.7 HY 23 500 Y
7522-500 1/2 12.7 2 0.750 19.1 0.16 0.07 1.5 38.1 300 20.7 HY 17 500 Y
7522-625 5/8 16.1 2 0.890 22.6 0.19 0.09 2.5 63.5 300 20.7 HY 10 500 N
7522-750 3/4 19.6 2 1.090 27.7 0.29 0.13 2.8 71.1 300 20.7 HY 10 350 Y
7522-1000 1 26.2 2 1.400 35.6 0.44 0.20 4.0 101.6 200 13.8 * 5 250 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

Series 7523 (Red)
Part ID ID Reinf OD OD Approx Approx Min Min ! Max ! Max Perm Vacuum Std Stock
Number (in) (mm) Plies (in) (mm) Wt Wt Bend Bend Rec WP Rec WP Cplg Hg Pack Status
(lbs/ft) (kg/ft) Rad Rad @ 68°F @ 20°C Rec (in) Qty **
(in) (mm) (psi) (bar) * (ft)
7523-250 1/4 6.7 2 0.500 12.7 0.09 0.04 0.8 20.3 300 20.7 HY 23 500 Y
7523-380 3/8 9.8 2 0.595 15.1 0.10 0.05 1.0 25.4 300 20.7 HY 23 500 Y
7523-500 1/2 12.7 2 0.750 19.1 0.16 0.07 1.5 38.1 300 20.7 HY 17 500 Y
7523-625 5/8 16.1 2 0.890 22.6 0.19 0.09 2.5 63.5 300 20.7 HY 10 500 Y
7523-750 3/4 19.6 2 1.090 27.7 0.29 0.13 2.8 71.1 300 20.7 HY 10 350 Y
7523-1000 1 26.2 2 1.400 35.6 0.44 0.20 4.0 101.6 200 13.8 * 5 250 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

! WARNINGS!
„ Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„ Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See the PVC and Thermoplastic
!
Temperature/Pressure chart on page 445.
