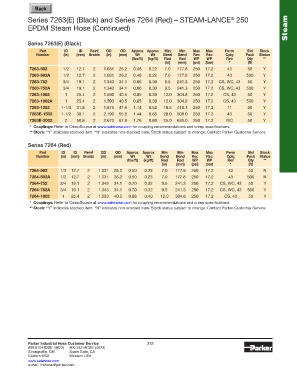

Page 332 - Parker - Parker Industrial Hose

Back
Series 7263(E) (Black) and Series 7264 (Red) – STEAM-LANCE 250
®
EPDM Steam Hose (Continued) Steam

Series 7263(E) (Black)
Part ID ID Reinf OD OD Approx Approx Min Min Max Max Perm Std Stock
Number (in) (mm) Braids (in) (mm) Wt Wt Bend Bend Rec Rec Cplg Pack Status
(lbs/ft) (kg/ft) Rad Rad WP WP Rec Qty **
(in) (mm) (psi) (bar) * (ft)
7263-502 1/2 12.7 2 1.031 26.2 0.48 0.22 7.0 177.8 250 17.2 43 50 Y
7263-502A 1/2 12.7 2 1.031 26.2 0.48 0.22 7.0 177.8 250 17.2 43 500 Y
7263-752 3/4 19.1 2 1.343 34.1 0.66 0.30 9.5 241.3 250 17.2 CS, WC, 43 50 Y
7263-752A 3/4 19.1 2 1.343 34.1 0.66 0.30 9.5 241.3 250 17.2 CS, WC, 43 500 Y
7263-1002 1 25.4 2 1.593 40.5 0.85 0.39 12.0 304.8 250 17.2 CS, 43 50 Y
7263-1002A 1 25.4 2 1.593 40.5 0.85 0.39 12.0 304.8 250 17.2 CS, 43 500 Y
7263-1252 1-1/4 31.8 2 1.875 47.6 1.14 0.52 16.5 419.1 250 17.2 71 50 Y
7263E-1502 1-1/2 38.1 2 2.190 55.6 1.44 0.65 20.0 508.0 250 17.2 43 50 Y
7263E-2002 2 50.8 2 2.670 67.8 1.76 0.80 25.0 635.0 250 17.2 WC 50 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

Series 7264 (Red)

Part ID ID Reinf OD OD Approx Approx Min Min Max Max Perm Std Stock
Number (in) (mm) Braids (in) (mm) Wt Wt Bend Bend Rec Rec Cplg Pack Status
(lbs/ft) (kg/ft) Rad Rad WP WP Rec Qty **
(in) (mm) (psi) (bar) * (ft)
7264-502 1/2 12.7 2 1.031 26.2 0.50 0.23 7.0 177.8 250 17.2 43 50 N
7264-502A 1/2 12.7 2 1.031 26.2 0.50 0.23 7.0 177.8 250 17.2 43 500 N
7264-752 3/4 19.1 2 1.343 34.1 0.70 0.32 9.5 241.3 250 17.2 CS, WC, 43 50 Y
7264-752A 3/4 19.1 2 1.343 34.1 0.70 0.32 9.5 241.3 250 17.2 CS, WC, 43 500 Y
7264-1002 1 25.4 2 1.593 40.5 0.88 0.40 12.0 304.8 250 17.2 CS, 43 50 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
