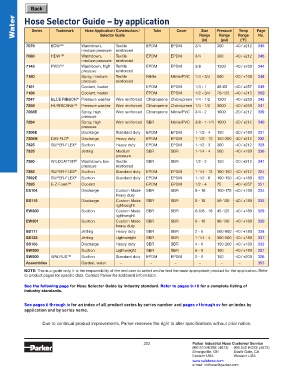

Water Hose Selector Guide – by application Cover Size Pressure Temp Page

Hose Application / Construction /
Series
Trademark
Tube
Selector Guide
Range
(psi)
(°F )
(in) Range Range No.
7079 ECW™ Washdown, Textile EPDM EPDM 3/4 300 -40 / +212 345
medium pressure reinforced
7080 HDW™ Washdown, Textile EPDM EPDM 3/4 300 -40 / +212 346
medium pressure reinforced
7143 PWD™ Washdown, high Textile EPDM EPDM 3/8 1500 -40 / +250 344
pressure reinforced
7180 Spray, medium Textile Nitrile Nitrile/PVC 1/4 - 3/4 800 -20 / +180 348
pressure reinforced
7181 Coolant, heater EPDM EPDM 1/4 - 1 45-65 -40 / +257 349
7186 Coolant, heater EPDM EPDM 1/2 - 3/4 70-125 -40 / +212 350
7247 BLUE RIBBON ® Pressure washer Wire reinforced Chloroprene Chloroprene 1/4 - 1/2 1500 -40 / +250 343
7258 HURRICANE™ Pressure washer Wire reinforced Chloroprene Chloroprene 1/4 - 1/2 3000 -40 / +250 341
7268E Spray, high Wire reinforced Chloroprene Nitrile/PVC 3/4 - 2 1000 -20 / +212 339
pressure
7284 Spray, high Wire reinforced SBR Nitrile/PVC 3/8 - 1-1/4 1000 -20 / +212 340
pressure
7306E Discharge Standard duty EPDM EPDM 1-1/2 - 4 150 -20 / +180 331
7306H DAY-FLO ® Discharge Heavy duty EPDM EPDM 1-1/2 - 10 150-200 -30 / +212 332
7325 SUPER-FLEX ® Suction Heavy duty EPDM EPDM 1-1/2 - 3 300 -40 / +212 328
7335 Jetting Medium SBR SBR 1-1/4 - 4 500 -40 / +180 336
pressure
7360 WILDCATTER ® Washdown, low Textile SBR SBR 1/2 - 2 150 -20 / +212 347
pressure reinforced
7392 SUPER-FLEX ® Suction Standard duty EPDM EPDM 1-1/4 - 12 100-150 -40 / +212 324
7392E SUPER-FLEX ® Suction Standard duty EPDM EPDM 1-1/2 - 6 100-150 -40 / +180 325
7395 E-Z Form™ Coolant EPDM EPDM 1/2 - 4 75 -40 / +257 351
ES104 Discharge Custom Made SBR SBR 8 - 18 100-175 -40 / +180 334
heavy duty
ES115 Discharge Custom Made SBR SBR 8 - 18 50-100 -40 / +180 335
lightweight
EW300 Suction Custom Made SBR SBR 6-5/8 - 18 45-125 -40 / +180 329
lightweight
EW301 Suction Custom Made SBR SBR 8 - 18 90-150 -40 / +180 330
heavy duty
SS111 Jetting Heavy duty SBR SBR 2 - 6 500-800 -40 / +180 338
SS122 Jetting Lightweight SBR SBR 1-1/4 - 4 300-500 -40 / +180 337
SS155 Discharge Heavy duty SBR SBR 4 - 6 150-200 -40 / +180 333
SW300 Suction Lightweight SBR SBR 6 - 8 100 -40 / +180 327
SW500 WALRUS™ Suction Standard duty EPDM EPDM 2 - 6 150 -40 / +200 326
Assemblies Garden, water – – – – – – 353
NOTE: This is a guide only. It is the responsibility of the end user to select and/or test the most appropriate product for the application. Refer
to product pages for specific data. Contact Parker for additional information.

See the following page for Hose Selector Guide by industry standard. Refer to pages 9-10 for a complete listing of
industry standards.

See pages ii through iv for an index of all product series by series number and pages v through xv for an index by
application and by series name.

Due to continual product improvements, Parker reserves the right to alter specifications without prior notice.
