DPDS Series
M5
M5
M3
M3
M1
M1 M5 M1 M5 M100 M3 M5 M3
M100
M100M3M3
M5

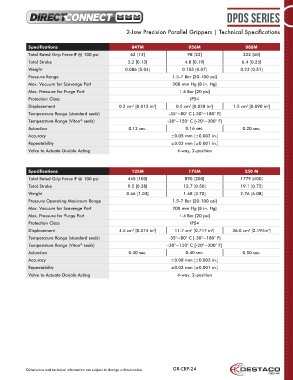

2-Jaw Precision Parallel Grippers | Technical Specifications
Specifications 047M 056M 088M
Total Rated Grip Force F @ 100 psi 62 [14] 98 [22] 222 [50]
Total Stroke 3.2 [0.13] 4.8 [0.19] 6.4 [0.25]
Weight 0.086 [0.04] 0.155 [0.07] 0.23 [0.51]
Pressure Range 1.5-7 Bar [20-100 psi]
Max. Vacuum for Scavenge Port 200 mm Hg [8 in. Hg]
Max. Pressure for Purge Port 1.4 Bar [20 psi]
Protection Class IP54
Displacement 0.2 cm [0.013 in ] 0.5 cm [0.028 in ] 1.5 cm [0.090 in ]
3
3
3
3
3
3
Temperature Range (standard seals) -35°~80° C [-30°~180° F]
Temperature Range (Viton seals) -30°~150° C [-20°~300° F]
®
Actuation 0.13 sec. 0.16 sec. 0.20 sec.
Accuracy ±0.05 mm [±0.002 in.]
Repeatability ±0.03 mm [±0.001 in.]
Valve to Actuate Double Acting 4-way, 2-position
Specifications 125M 175M 250 M
Total Rated Grip Force F @ 100 psi 445 [100] 890 [200] 1779 [400]
Total Stroke 9.5 [0.38] 12.7 [0.50] 19.1 [0.75]
Weight 0.46 [1.03] 1.68 [3.70] 2.76 [6.08]
Pressure Operating Maximum Range 1.5-7 Bar [20-100 psi]
Max. Vacuum for Scavenge Port 200 mm Hg [8 in. Hg]
Max. Pressure for Purge Port 1.4 Bar [20 psi]
Protection Class IP54
Displacement 4.5 cm [0.274 in ] 11.7 cm [0.717 in ] 36.0 cm [2.194in ]
3
3
3
3
3
3
Temperature Range (standard seals) -35°~80° C [-30°~180° F]
®
Temperature Range (Viton seals) -30°~150° C [-20°~300° F]
Actuation 0.30 sec. 0.40 sec. 0.50 sec.
Accuracy ±0.08 mm [±0.003 in.]
Repeatability ±0.03 mm [±0.001 in.]
Valve to Actuate Double Acting 4-way, 2-position
Dimensions and technical information are subject to change without notice GR-CRP-24
