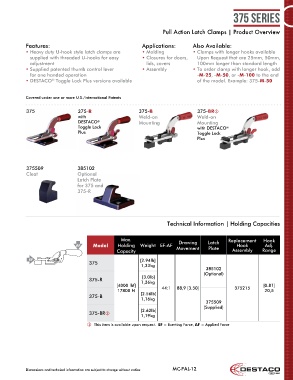

Page 137 - Destaco - Clamping Technology

375 Series

Pull Action Latch Clamps | Product Overview

Features: Applications: Also Available:
• Heavy duty U-hook style latch clamps are • Molding • Clamps with longer hooks available
supplied with threaded U-hooks for easy • Closures for doors, Upon Request that are 25mm, 50mm,
adjustment lids, covers 100mm longer than standard length
• Supplied patented thumb control lever • Assembly • To order clamp with longer hook, add
for one handed operation -M-25, -M-50, or -M-100 to the end
• DESTACO Toggle Lock Plus versions available of the model. Example: 375-M-50
®

Covered under one or more U.S./International Patents

375 375-R 375-B 375-BR
331
with Weld-on Weld-on
DESTACO ® Mounting Mounting
Toggle Lock with DESTACO ®
Plus Toggle Lock
Plus

375509 385102
Cleat Optional
Latch Plate
for 375 and
375-R

Technical Information | Holding Capacities

Max. Drawing Latch Replacement Hook
AF Model Holding Weight EF:AF Movement Plate Hook Adj.
Capacity Assembly Range
EF [2.94lb]
375
1,33kg
385102
(Optional)
[3.0lb]
375-R 1,36kg
[4000 lbf] [0.81]
17800 N 44:1 88,9 [3.50] 375215 20,5
375-B [2.56lb]
1,16kg
375509
(Supplied)
[2.62lb]
375-BR
1,19kg
 This item is available upon request. EF = Exerting Force, AF = Applied Force

Dimensions and technical information are subject to change without notice MC-PAL-12
