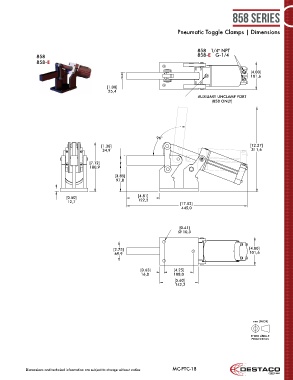

P. 197
858 Series
Pneumatic Toggle Clamps | Dimensions
858
858 1/4" NPT
858 858-E G-1/4
858-E
[4.00]
101,6
[1.00]
25,4
AUXILIARY UNCLAMP PORT
(858 ONLY)
96°
[1.38] [12.27]
34,9 311,6
[7.12]
180,9
[3.85]
97,8
[0.50] [4.81]
12,7 122,2
[17.52]
445,0
[0.41]
Ø 10,3
[2.75] [4.00]
69,9 101,6
[0.63] [4.25]
16,0 108,0
[5.60]
142,2
mm [INCH] mm [INCH]
THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION
Dimensions and technical information are subject to change without notice MC-PTC-18
