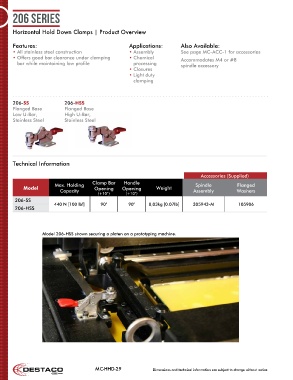

Page 82 - Destaco - Clamping Technology

206 Series

Horizontal Hold Down Clamps | Product Overview

Features: Applications: Also Available:
• All stainless steel construction • Assembly See page MC-ACC-1 for accessories
• Offers good bar clearance under clamping • Chemical Accommodates M4 or #8
bar while maintaining low profile processing spindle accessory
• Closures
• Light duty
clamping

206-SS 206-HSS
Flanged Base Flanged Base
Low U-Bar, High U-Bar,
Stainless Steel Stainless Steel

Technical Information

Accessories (Supplied)
Clamp Bar Handle
Max. Holding Spindle Flanged
Model Opening Opening Weight
Capacity Assembly Washers
(+10°) (+10°)
206-SS
440 N [100 lbf] 90° 90° 0,03kg [0.07lb] 205943-M 105906
206-HSS

Model 206-HSS shown securing a platen on a prototyping machine.

MC-HHD-29 Dimensions and technical information are subject to change without notice
