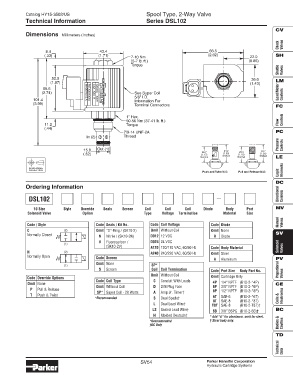

Page 56 - Parker - Solenoid Valves

Catalog HY15-3502/US Spool Type, 2-Way Valve
Technical Information Series DSL102

CV
Dimensions Millimeters (Inches)
Check Valves

8.4 43.4 66.5
(.33) (1.71) (2.62) SH
7-10 Nm 22.0
(5-7 lb. ft.) (0.86)
Torque
Shuttle Valves
50.0 36.0
(1.97) (1.43) LM
69.6
(2.74) MADEINU.S.A. PAT.XXXXXXX CAX XXX H XXVDC XXW See Super Coil Load/Motor Controls
5/8" I.D.
101.4 Information For
(3.99) Terminal Connectors FC

1" Hex.
50-56 Nm (37-41 lb. ft.) Controls
11.2 Torque Flow
(.44)
7/8-14 UNF-2A PC
In (2) Thread
Pressure Controls
15.8 Out (1) 34.2 34.2
29.9
29.7
(.62) (1.17) (1.35) (1.18) (1.35)
Normal Shifted Normal Shifted LE
THIRD-ANGLE
PROJECTION Elements
Push and Twist M.O. Pull and Release M.O. Logic
DC
Ordering Information

DSL102 Directional Controls
10 Size Style Override Seals Screen Coil Coil Coil Diode Body Port MV
Solenoid Valve Option Type Voltage Termination Material Size
Manual Valves
Code / Style Code Seals / Kit No. Code Coil Voltage Code Diode
C (2) Omit “D”-Ring / (SK10-2) Omit Without Coil Omit None
Normally Closed N Nitrile / (SK10-2N) D012 12 VDC R Diode SV
V Fluorocarbon / D024 24 VDC
(1)
(SK10-2V) A120 120/110 VAC, 60/50 Hz Code Body Material Solenoid Valves
N (2) A240 240/220 VAC, 60/50 Hz Omit Steel
Normally Open Code Screen A Aluminum PV
Omit None
(1) SP*
S Screen Coil Coil Termination Code Port Size Body Part No. Proportional
Omit Without Coil Valves
Code Override Options Omit Cartridge Only
Code Coil Type C Conduit With Leads
Omit None 4P 1/4″ NPTF (B10-2-*4P) CE
Omit Without Coil D DIN Plug Face 6P 3/8″ NPTF (B10-2-*6P)
P Pull & Release 8P 1/2″ NPTF (B10-2-*8P)
SP* Super Coil - 28 Watts A Amp Jr. Timer†
T Push & Twist Electronics
*Recommended S Dual Spade† 6T SAE-6 (B10-2-*6T) Coils &
8T SAE-8 (B10-2-*8T)
L Dual Lead Wire† T8T SAE-8 (B10-2-T8T)†
LS Sealed Lead Wire† 6B 3/8″ BSPG (B10-2-6B)† BC
H Molded Deutsch† * Add “A” for aluminum. omit for steel.
*Recommended † Steel body only. Bodies &
†DC Only Cavities
TD
Technical Data

SV54 Parker Hannifin Corporation
Hydraulic Cartridge Systems
