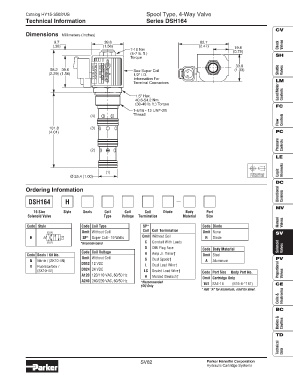

Page 84 - Parker - Solenoid Valves

Catalog HY15-3502/US Spool Type, 4-Way Valve
Technical Information Series DSH164

CV
Dimensions Millimeters (Inches)
9.7 39.6 62.7
(.38) (1.56) (2.47) 19.8 Check Valves
7-10 Nm (0.78)
(5-7 lb. ft.) SH
Torque
33.8
58.2 39.6 See Super Coil (1.33) Shuttle Valves
(2.29) (1.56) MADEINU.S.A. PAT.XXXXXXX CCX XXX H XXVDC XXW 1/2" I.D.
Information For LM
Terminal Connectors
Load/Motor
1.5" Hex. Controls
40.6-54.2 Nm
(30-40 lb. ft.) Torque
FC
1-5/16 - 12 UNF-2B
(4) Thread
Flow Controls

101.8 (3)
(4.01) PC
Pressure Controls

(2)
LE

(1) Logic Elements
THIRD-ANGLE
Ø 25.4 (1.00) PROJECTION
DC
Directional Controls
Ordering Information
DSH164 H
MV
16 Size Style Seals Coil Coil Coil Diode Body Port
Solenoid Valve Type Voltage Termination Material Size
Manual Valves
Code Style Code Coil Type SP* Code Diode
(2) (4) Omit Without Coil Coil Coil Termination Omit None SV
H SP* Super Coil - 19 Watts Omit Without Coil R Diode
(3) (1) *Recommended C Conduit With Leads
D DIN Plug Face Code Body Material Solenoid Valves
Code Coil Voltage
Code Seals / Kit No. A Amp Jr. Timer† Omit Steel
Omit Without Coil PV
N Nitrile / (SK10-4N) S Dual Spade† A Aluminum
D012 12 VDC
V Fluorocarbon / L Dual Lead Wire†
(SK10-4V) D024 24 VDC LS Sealed Lead Wire† Code Port Size Body Part No. Proportional
A120 120/110 VAC, 60/50 Hz H Molded Deutsch† Omit Cartridge Only Valves
A240 240/220 VAC, 60/50 Hz *Recommended
†DC Only 16T SAE-16 (B16-4-*16T) CE
* Add “A” for aluminum, omit for steel.
Coils & Electronics

BC
Bodies & Cavities

TD
Technical Data

SV82 Parker Hannifin Corporation
Hydraulic Cartridge Systems
