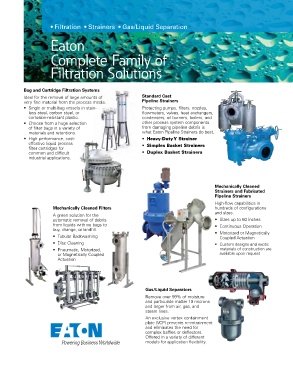

P. 49
• Filtration • Strainers • Gas/Liquid Separation
Eaton
Complete Family of
Filtration Solutions
Bag and Cartridge Filtration Systems
Ideal for the removal of large amounts of Standard Cast
very fine material from the process media. Pipeline Strainers
• Single or multi-bag vessels in stain- Protecting pumps, filters, nozzles,
less steel, carbon steel, or flowmeters, valves, heat exchangers,
corrosion-resistant plastic. condensers, oil burners, boilers, and
• Choose from a huge selection other process system components
of filter bags in a variety of from damaging pipeline debris is
materials and retentions. what Eaton Pipeline Strainers do best.
• High performance, cost- • Heavy-Duty Y Strainer
effective liquid process • Simplex Basket Strainers
filter cartridges for
common and difficult • Duplex Basket Strainers
industrial applications.
Mechanically Cleaned
Strainers and Fabricated
Pipeline Strainers
High-flow capabilities in
Mechanically Cleaned Filters hundreds of configurations
and sizes.
A green solution for the
automatic removal of debris • Sizes up to 60 inches
from liquids with no bags to • Continuous Operation
buy, change, or landfill. • Motorized or Magnetically
• Tubular Backwashing Coupled Actuation
• Disc Cleaning • Custom designs and exotic
• Pneumatic, Motorized, materials of construction are
or Magnetically Coupled available upon request
Actuation
Gas/Liquid Separators
Remove over 99% of moisture
and particulate matter 10 microns
and larger from air, gas, and
steam lines.
An exclusive vortex containment
plate (VCP) prevents re-entrainment
and eliminates the need for
complex baffles or deflectors.
Offered in a variety of different
models for application flexibility.
