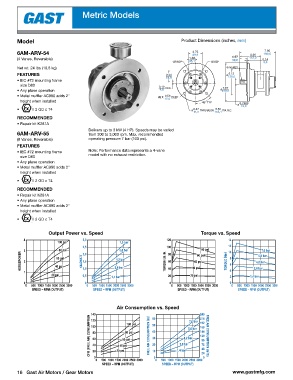

Page 16 - Gast Airmotor_D-10_Catalog

Metric Models

Model Product Dimensions (inches, mm)

7.50
6AM-ARV-54 2.75 4.41 190,5
69,9
(4 Vanes, Reversible) 1.38 1.57 112,0 0.14
39,8
1/2 BSP 35,1 1/2 BSP 3,6
Net wt. 24 lbs (10,8 kg) 6 mm KEY
FEATURES 2.44 ø 5.12
61,9 130,0
• IEC #72 mounting frame
size D80 0.19 7.87
• Any plane operation 4,8 ECC. ø 199,9
• Metal muffler AC990 adds 2" M6 X 0.59 DEEP
height when installed 15,0 45° TYP
0.7480
ø 19,0
• II 2 GD c T4 ø 0.47 THRU (4) ON 165,1 DIA. B.C.
6.50
11,9
RECOMMENDED
• Repair kit K281A
Delivers up to 3 kW (4 HP). Speeds may be varied
6AM-ARV-55 from 300 to 3,000 rpm. Max. recommended
(8 Vanes, Reversible) operating pressure 7 bar (100 psi).
FEATURES
• IEC #72 mounting frame Note: Performance data represents a 4-vane
size D80 model with no exhaust restriction.
• Any plane operation
• Metal muffler AC990 adds 2"
height when installed
• II 2 GD c T4

RECOMMENDED
• Repair kit K281A
• Any plane operation
• Metal muffler AC990 adds 2"
height when installed
• II 2 GD c T4

Output Power vs. Speed Torque vs. Speed
4 3,0 120 14
100 psi 7,0 bar
2,5 100 12
100 psi
3 80 psi 2,0 5,6 bar 80 80 psi 10 5,6 bar
7,0 bar
HORSEPOWER 2 40 psi KILOWATT 1,5 4,2 bar TORQUE LB. IN. 60 60 psi TORQUE (Nm) 8 6 4,2 bar
60 psi
1 1,0 2,8 bar 40 40 psi 4 2,8 bar
20 psi 0,5 1,4 bar 20 20 psi 2 1,4 bar
0 0 0 0
0 500 1000 1500 2000 2500 3000 0 500 1000 1500 2000 2500 3000 0 500 1000 1500 2000 2500 3000 0 500 1000 1500 2000 2500 3000
SPEED – RPM (OUTPUT) SPEED – RPM (OUTPUT) SPEED – RPM (OUTPUT) SPEED – RPM (OUTPUT)

Air Consumption vs. Speed
140 100 psi 60 7,0 bar 216
CFM (FREE AIR) CONSUMPTION 100 40 psi FREE AIR CONSUMPTION (l/s) 50 2,8 bar 5,6 bar 168
120
192
144
40
80 psi
80
120
30
4,2 bar
60
60 psi
96
72
20
40
20
24
0 20 psi 10 1,4 bar 48 0
0
240 FREE AIR CONSUMPTION (m 3 /h)
0 500 1000 1500 2000 2500 3000 0 500 1000 1500 2000 2500 3000
SPEED – RPM (OUTPUT) SPEED – RPM (OUTPUT)
16 Gast Air Motors / Gear Motors www.gastmfg.com
