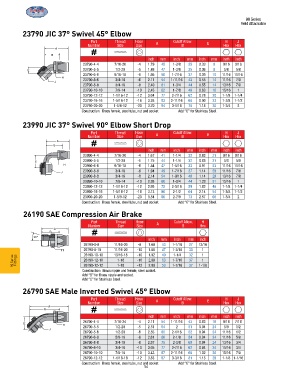

Page 57 - Parker - Fluoropolymer hose and fittings products

90 Series
Field Attachable
23790 JIC 37° Swivel 45° Elbow
Part Thread Hose Cutoff Allow. H J
Number Size Size A B E Hex Hex

inch mm inch mm inch mm inch inch
23790-4-4 7/16-20 -4 1.79 45 1-3/8 35 0.33 8 9/16 9/16
23790-5-5 1/2-20 -5 1.86 47 1-3/8 35 0.36 9 5/8 5/8
23790-6-6 9/16-18 -6 1.96 50 1-7/16 37 0.39 10 11/16 11/16
23790-8-6 3/4-16 -6 2.11 54 1-11/16 43 0.55 14 11/16 7/8
23790-8-8 3/4-16 -8 2.40 61 1-3/4 44 0.55 14 13/16 7/8
23790-10-10 7/8-14 -10 2.45 62 1-7/8 48 0.63 16 15/16 1
23790-12-12 1-1/16-12 -12 3.04 77 2-7/16 62 0.78 20 1-1/8 1-1/4
23790-16-16 1-5/16-12 -16 3.28 83 2-11/16 68 0.90 23 1-3/8 1-1/2
23790-20-20 1-5/8-12 -20 3.70 94 3-1/16 78 1.18 30 1-3/4 2
Construction: Brass ferrule, steel tube, nut and socket. Add “C” for Stainless Steel.

23990 JIC 37° Swivel 90° Elbow Short Drop

Part Thread Hose Cutoff Allow. H J
Number Size Size A B E Hex Hex

inch mm inch mm inch mm inch inch
23990-4-4 7/16-20 -4 1.67 41 1-1/4 32 0.83 21 9/16 9/16
23990-5-5 1/2-20 -5 1.75 44 1-1/4 32 0.83 21 5/8 5/8
23990-6-6 9/16-18 -6 1.84 47 1-5/16 33 0.91 23 11/16 11/16
23990-8-6 3/4-16 -6 1.94 49 1-7/16 37 1.14 29 11/16 7/8
23990-8-8 3/4-16 -8 2.14 54 1-9/16 40 1.14 29 13/16 7/8
23990-10-10 7/8-14 -10 2.38 60 1-3/4 44 1.23 31 15/16 1
23990-12-12 1-1/16-12 -12 2.95 75 2-5/16 59 1.82 46 1-1/8 1-1/4
23990-16-16 1-5/16-12 -16 3.13 80 2-1/2 64 2.14 54 1-3/8 1-1/2
23990-20-20 1-5/8-12 -20 3.54 90 2-7/8 73 2.57 65 1-3/4 2
Construction: Brass ferrule, steel tube, nut and socket. Add “C” for Stainless Steel.
26190 SAE Compression Air Brake

Part Thread Hose Cutoff Allow. H
Number Size Size A B Hex

20°
inch mm inch mm inch
26190-8-8 11/16-20 -8 1.69 43 1-1/16 27 13/16
26190-8-10 11/16-20 -10 1.86 47 1-3/16 30 1 1
1.92
49
13/16-18
26190-10-10
32
1-1/4
-10
90 Series Fittings 26190-12-10 1-18 -10 2.09 53 1-7/16 37 1-1/8
1
1-18
53
1-7/16
2.09
-12
26190-12-12
37
Construction: Brass nipple and ferrule, steel socket.
Add “B” for Brass nipple and socket.
Add “C” for Stainless Steel.
26790 SAE Male Inverted Swivel 45° Elbow
Part Thread Hose Cutoff Allow. H J
Number Size Size A B E Hex Hex
inch mm inch mm inch mm inch inch
26790-4-4 7/16-24 -4 2.11 54 1-11/16 43 0.63 16 9/16 7/16
26790-5-5 1/2-20 -5 2.51 64 2 51 0.94 24 5/8 1/2
26790-5-6 1/2-20 -6 2.55 65 2-1/16 52 0.94 24 11/16 1/2
26790-6-6 5/8-18 -6 2.61 66 2-1/8 54 0.94 24 11/16 5/8
26790-8-8 3/4-18 -8 2.97 75 2-3/8 60 0.94 24 13/16 3/4
26790-8-10 3/4-18 -10 3.05 77 2-7/16 62 0.94 24 15/16 3/4
26790-10-10 7/8-18 -10 3.43 87 2-11/16 68 1.02 26 15/16 7/8
26790-12-12 1-1/16-16 -12 3.83 97 3-3/16 81 1.15 29 1-1/8 1-1/16
Construction: Brass ferrule, steel tube, nut and socket. Add “C” for Stainless Steel.
54
