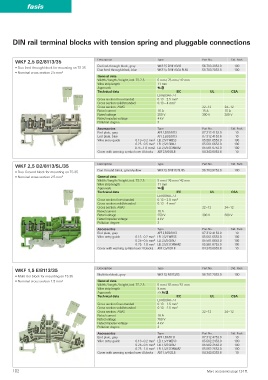

Page 102 - Wieland - Selos/Fasis

fasis

DIN rail terminal blocks with tension spring and pluggable connections

WKF 2,5 D2/8113/35 Description Type Part No. Std. Pack
Du feed-through block, gray WKF 2,5 D2/8113/35 56.703.2053.0 100
• Duo feed-through block for mounting on TS 35
Duo feed-through block, blue WKF 2,5 D2/8113/35 BLAU 56.703.2053.6 100
• Nominal cross section 2.5 mm 2
General data
Width / length / height, incl. TS 7.5 5 mm / 76 mm / 42 mm
Wire strip length 11 mm
Approvals MD
Technical data IEC UL CSA
EN 60 947-7-1
Cross section fine-stranded 0.13 – 2.5 mm 2
Cross section solid/stranded 0.13 – 4 mm 2
Cross section, AWG 22 – 12 24 – 12
Rated current 16 A 15 A 15 A
Rated voltage 250 V 300 V 300 V
Rated impulse voltage 4 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate, gray APF 2,5/D2/8113 07.312.4153.0 10
End plate, blue APF 2,5/D2/8113 07.312.4153.6 10
Wire entry guide 0.13 – 0.2 mm 2 LEL 2,5/1 WEISS 05.561.6553.0 100
0.25 – 0.5 mm 2 LEL 2,5/2 GRAU 05.561.6653.0 100
0.75 – 1.0 mm2 LEL 2,5/3 SCHWARZ 05.561.6753.0 100
Cover with warning symbol over 4 blocks ADF 2,5/4 GELB 04.343.6053.8 10

WKF 2,5 D2/8113/SL/35 Description Type Part No. Std. Pack
Duo-Ground block, green/yellow WKF 2,5 D2/8113 SL/35 56.703.9253.0 100
• Duo-Ground block for mounting on TS 35
• Nominal cross section 2.5 mm 2 General data
Width / length / height, incl. TS 7.5 5 mm / 76 mm / 42 mm
Wire strip length 11 mm
Approvals MD
Technical data IEC UL CSA
EN 60 947-7-1
Cross section fine-stranded 0.13 – 2.5 mm 2
Cross section solid/stranded 0.13 – 4 mm 2
Cross section, AWG 22 – 12 24 – 12
Rated current 16 A
Rated voltage 250 V 300 V 300 V
Rated impulse voltage 4 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate, gray APF 2,5/D2/8113 07.312.4153.0 10
Wire entry guide 0.13 – 0.2 mm 2 LEL 2,5/1 WEISS 05.561.6553.0 100
0.25 – 0.5 mm 2 LEL 2,5/2 GRAU 05.561.6653.0 100
0.75 – 1.0 mm 2 LEL 2,5/3 SCHWARZ 05.561.6753.0 100
Cover with warning symbol over 4 blocks ADF 2,5/4 GELB 04.343.6053.8 10

WKF 1,5 E/8113/35 Description Type Part No. Std. Pack
Multi-tier block, gray WKF 1,5 E/8113/35 56.702.2053.0 100
• Multi-tier block for mounting on TS 35
• Nominal cross section 1.5 mm 2 General data
Width / length / height, incl. TS 7.5 5 mm / 83 mm / 51 mm
Wire strip length 8 mm
Approvals NMD
Technical data IEC UL CSA
EN 60 947-7-1
Cross section fine-stranded 0.13 – 1.5 mm 2
Cross section solid/stranded 0.13 – 2.5 mm 2
Cross section, AWG 22 – 12 24 – 12
Rated current 16 A
Rated voltage 250 V
Rated impulse voltage 4 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate, gray APF 1,5/E/8113 07.312.4753.0 10
Wire entry guide 0.13 – 0.2 mm 2 LEL 1,5/1 WEISS 05.562.2453.0 100
0.25 – 0.5 mm 2 LEL 1,5/2 GRAU 05.562.2553.0 100
0.75 – 1.0 mm 2 LEL 1,5/3 SCHWARZ 05.562.2653.0 100
Cover with warning symbol over 4 blocks ADF 1,5/4 GELB 04.343.8353.8 10

102 More accessories page 124 ff.
