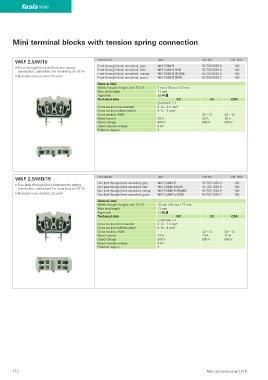

Page 112 - Wieland - Selos/Fasis

fasis MINI

Mini terminal blocks with tension spring connection

WKF 2,5/M/15 Description Type Part No. Std. Pack
Feed-through block unmarked, gray WKF 2,5/M/15 55.703.0553.0 100
• Feed-through block with tension spring
connection, unmarked, for mounting on TS 15 Feed-through block unmarked, blue WKF 2,5/M/15 BLAU 55.703.0553.6 100
Feed-through block unmarked, orange WKF 2,5/M/15 ORANGE 55.703.0553.9 100
• Nominal cross section 2.5 mm 2 Feed-through block unmarked, green WKF 2,5/M/15 GRÜN 55.703.0553.7 100
General data
Width / length / height, incl. TS 5.5 5 mm / 36 mm / 27 mm
Wire strip length 11 mm
Approvals NMD
Technical data IEC UL CSA
EN 60 947-7-1
Cross section fine-stranded 0.13 – 2.5 mm 2
Cross section solid/stranded 0.13 – 4 mm 2
Cross section, AWG 22 – 12 24 – 12
Rated current 24 A 20 A 25 A
Rated voltage 800 V 600 V 600 V
Rated impulse voltage 8 kV
Pollution degree 3

WKF 2,5/MD/15 Description Type Part No. Std. Pack
Duo feed-through block unmarked, gray WKF 2,5/MD/15 55.703.1053.0 100
• Duo feed-through block with tension spring Duo feed-through block unmarked, blue WKF 2,5/MD/15 BLAU 55.703.1053.6 100
connection, unmarked, for mounting on TS 15 Duo feed-through block unmarked, orange WKF 2,5/MD/15 ORANGE 55.703.1053.9 100
• Nominal cross section 2.5 mm 2 Duo feed-through block unmarked, green WKF 2,5/MD/15 GRÜN 55.703.1053.7 100
General data
Width / length / height, incl. TS 5.5 10 mm / 36 mm / 27 mm
Wire strip length 11 mm
Approvals NMD
Technical data IEC UL CSA
EN 60 947-7-1
Cross section fine-stranded 0.13 – 2.5 mm 2
Cross section solid/stranded 0.13 – 4 mm 2
Cross section, AWG 22 – 12 24 – 12
Rated current 24 A 20 A 25 A
Rated voltage 800 V 600 V 600 V
Rated impulse voltage 8 kV
Pollution degree 3

112 More accessories page 124 ff.
