SALLE®
Light Tower

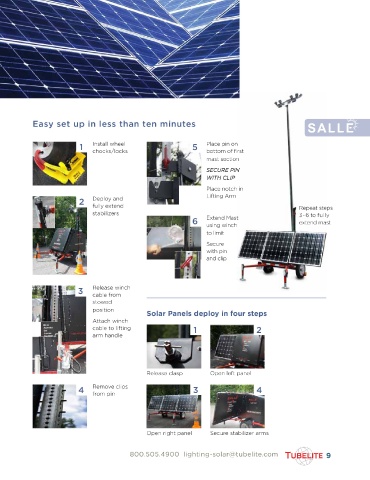

Light up an area with no utility power source Easy set up in less than ten minutes
1 Install wheel 5 Place pin on
chocks/locks bottom of first
mast section
SECURE PIN
WITH CLIP
Place notch in
Lifting Arm
2 Deploy and
g Easily towed by any vehicle (960-1100lbs) fully extend Repeat steps
stabilizers 3-6 to fully
g Compact size when stowed 7’6”L x 4’6”W x 7’8”H 6 Extend Mast extend mast
g Time Clock and Photo Cell standard using winch
to limit
g Lockable storage for Safety Equipment Secure
g Mast extends to 24' with pin
and clip
g Multiple lighting options
g Optional CCTV Cameras with DVR
3 Release winch
cable from
STANDARD COMPONENTS: stowed
Four 200AH or six 100AH sealed lead acid batteries position Solar Panels deploy in four steps
12V (360W) or 24V (720) System Attach winch
cable to lifting 1 2
Lighting controlled by time clock and/or photocell
arm handle
Dual Battery Charger (120V and Solar) to recharge and
maintain between uses
OPTIONS:
Release clasp Open left panel
450W of Solar Panels
CCTV Camera(s) with DVR, with or without audio 4 Remove clips 3 4
from pin
�
Open right panel Secure stabilizer arms
