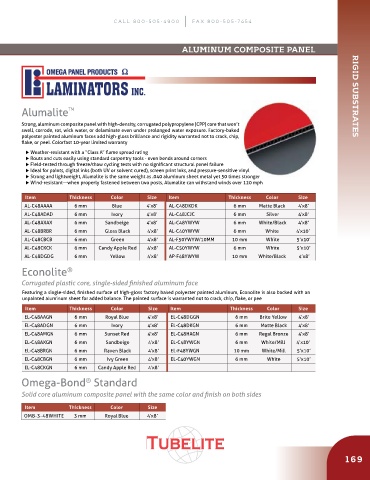

Page 171 - Tubelite Electrical Catalog

CALL 800 -505 - 4900 F AX 800 -505 - 7 454

ALUMINUM COMPOSITE PANEL

Alumalite TM RIGID SUBSTRATES

Strong, aluminum composite panel with high-density, corrugated polypropylene (CPP) core that won’t
swell, corrode, rot, wick water, or delaminate even under prolonged water exposure. Factory-baked
polyester painted aluminum faces add high-gloss brilliance and rigidity warranted not to crack, chip,
flake, or peel. Colorfast 10-year limited warranty
u Weather-resistant with a “Class A” flame spread rating
u Routs and cuts easily using standard carpentry tools - even bends around corners
u Field-tested through freeze/thaw cycling tests with no significant structural panel failure
u Ideal for paints, digital inks (both UV or solvent cured), screen print inks, and pressure-sensitive vinyl
u Strong and lightweight, Alumalite is the same weight as .040 aluminum sheet metal yet 50 times stronger
u Wind-resistant—when properly fastened between two posts, Alumalite can withstand winds over 120 mph

Item Thickness Color Size Item Thickness Color Size
AL-C48AAAA 6 mm Blue 4’x8’ AL-C48DKDK 6 mm Matte Black 4’x8’
AL-C48ADAD 6 mm Ivory 4’x8’ AL-C48JCJC 6 mm Silver 4’x8’
AL-C48AXAX 6 mm Sandbeige 4’x8’ AL-C48YWYW 6 mm White/Black 4’x8’
AL-C48BRBR 6 mm Gloss Black 4’x8’ AL-C40YWYW 6 mm White 4’x10’
AL-C48CBCB 6 mm Green 4’x8’ AL-F50YWYW/10MM 10 mm White 5’x10’
AL-C48CKCK 6 mm Candy Apple Red 4’x8’ AL-C50YWYW 6 mm White 5’x10’
AL-C48DGDG 6 mm Yellow 4’x8’ AP-F48YWYW 10 mm White/Black 4’x8’

Econolite ®

Corrugated plastic core, single-sided finished aluminum face
Featuring a single-sided, finished surface of high-gloss factory baked polyester painted aluminum, Econolite is also backed with an
unpainted aluminum sheet for added balance. The painted surface is warranted not to crack, chip, flake, or pee
Item Thickness Color Size Item Thickness Color Size
EL-C48AAGN 6 mm Royal Blue 4’x8’ EL-C48DGGN 6 mm Brite Yellow 4’x8’
EL-C48ADGN 6 mm Ivory 4’x8’ EL-C48DKGN 6 mm Matte Black 4’x8’
EL-C48AMGN 6 mm Sunset Red 4’x8’ EL-C48HAGN 6 mm Regal Bronze 4’x8’
EL-C48AXGN 6 mm Sandbeige 4’x8’ EL-C48YWGN 6 mm White/Mill 4’x10’
EL-C48BRGN 6 mm Raven Black 4’x8’ EL-F48YWGN 10 mm White/Mill 5’x10’
EL-C48CBGN 6 mm Ivy Green 4’x8’ EL-C40YWGN 6 mm White 5’x10’
EL-C48CKGN 6 mm Candy Apple Red 4’x8’

Omega-Bond Standard
®
Solid core aluminum composite panel with the same color and finish on both sides

Item Thickness Color Size
OMB-3-48WHITE 3 mm Royal Blue 4’x8’

169
