CORE & COIL

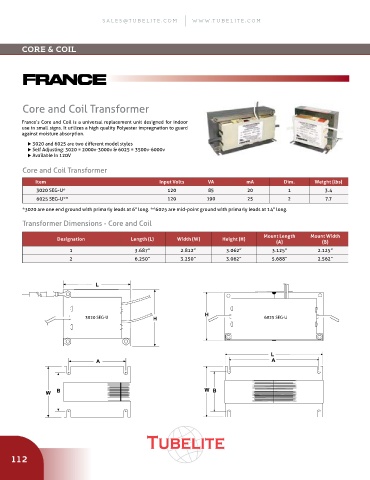

Core and Coil Transformer
France’s Core and Coil is a universal replacement unit designed for indoor
use in small signs. It utilizes a high quality Polyester impregnation to guard
against moisture absorption.
u 3020 and 6025 are two different model styles
u Self Adjusting: 3020 = 2000v-3000v & 6025 = 3500v-6000v
u Available in 120V
Core and Coil Transformer
Item Input Volts VA mA Dim. Weight (lbs)
3020 SEG-U* 120 85 20 1 3.4
6025 SEG-U** 120 190 25 2 7.7
*3020 are one end ground with primarly leads at 6” long. **6025 are mid-point ground with primarly leads at 14” long.
Transformer Dimensions - Core and Coil
Mount Length Mount Width
Designation Length (L) Width (W) Height (H)
(A) (B)
1 3.687” 2.812” 3.062” 3.125” 2.125”
2 6.250” 3.250” 3.062” 5.688” 2.562”
3020 SEG-U 6025 SEG-U
