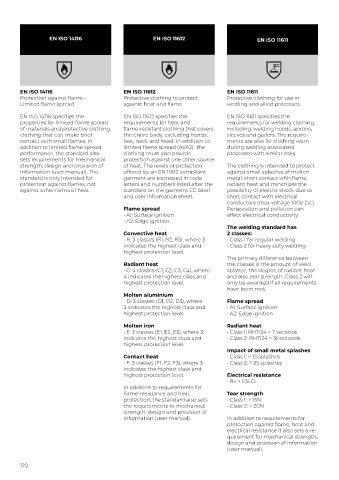

Page 170 - Ballyclare Workwear Catalogue 2021

EN ISO 14116 EN ISO 11612
EN ISO 14116
EN ISO 14116
Protection against flame –
Limited flame spread.
EN ISO 14116 specifies the
properties for limited flame spread
of materials and protective clothing.
clothing that can make brief
contact with small flames. In
addition to limited flame spread
performance, the standard also
sets requirements for mechanical
strength, design and provision of
information (user manual). The
standard is only intended for
protection against flames, not
against other forms of heat.
170
EN ISO 11611
EN ISO 11612
Protective clothing to protect
against heat and flame.
EN ISO 11612 specifies the
requirements for heat and
flame-resistant clothing that covers
the entire body, excluding hands,
feet, neck and head. In addition to
limited flame spread (A1/A2) the
clothing must also provide
protection against one other source
of heat. The levels or protection
offered by an EN 11612 compliant
garment are expressed in code
letters and numbers listed after the
standard on the garment CE label
and user information sheet.
Flame spread
• A1: Surface ignition
• A2: Edge ignition
Convective heat
• B: 3 classes (B1, B2, B3), where 3
indicates the highest class and
highest protection level.
Radiant heat
• C: 4 classes (C1, C2, C3, C4), where
4 indicates the highest class and
highest protection level.
Molten aluminium
• D: 3 classes (D1, D2, D3), where
3 indicates the highest class and
highest protection level.
Molten iron
• E: 3 classes (E1, E2, E3), where 3
indicates the highest class and
highest protection level.
Contact heat
• F: 3 classes (F1, F2, F3), where 3
indicates the highest class and
highest protection level.
In addition to requirements for
flame-resistance and heat
protection, the standard also sets
the requirements to mechanical
strength, design and provision of
information (user manual).
EN ISO 61482-1-2
EN ISO 11611
Protective clothing for use in
welding and allied processes.
EN ISO 11611 specifies the
requirements for welding clothing,
including, welding hoods, aprons,
sleeves and gaiters. The require-
ments are also for clothing worn
during welding associated
processes with similar risks.
The clothing is intended to protect
against small splashes of molten
metal, short contact with flame,
radiant heat and minimizes the
possibility of electric shock due to
short contact with electrical
conductors (max voltage 100V DC).
Perspiration and pollution can
affect electrical conductivity.
The welding standard has
2 classes:
• Class 1 for regular welding
• Class 2 for heavy duty welding
The primary difference between
the classes is the amount of weld
splatter, the degree of radiant heat
and also tear strength. Class 2 will
only be awarded if all requirements
have been met.
Flame spread
• A1: Surface ignition
• A2: Edge ignition
Radiant heat
• Class 1: RHTI24 > 7 seconds
• Class 2: RHTI24 > 16 seconds
Impact of small metal splashes
• Class 1: > 15 splashes
• Class 2: > 25 splashes
Electrical resistance
• Rv > 105 Â.
Tear strength
• Class 1: > 15N
• Class 2: > 20N
In addition to requirements for
protection against flame, heat and
electrical resistance it also sets a re-
quirement for mechanical strength,
design and provision of information
(user manual).
EN IEC 61482-1-1 EN 1149-5
EN ISO 61482-1-2 EN IEC 61482-1-1 EN 1149-5
Protective clothing with protection Protective clothing with protection Protective clothing with
against the thermal hazards of an against the thermal hazards of an electrostatic properties.
electric arc (Box-test method). electric arc (Open Arc method).
EN 1149-5 specifies the properties
EN-IEC 61482-1-2 specifies the box EN-IEC 61482-1-1 specifies the open for protective wear used in explo-
test method and requirements for arc test method and requirements sive atmospheres. The clothing is
flame and heat-resistant protec- for flame and heat-resistant protec- part of an earthed system to avoid
tive workwear where there is also tive workwear where there is also ignition sparks. The requirements
the risk of an electric arc. Hereby the risk of an electric arc. Hereby may be insufficient in oxygen-rich
the thermal protection is assessed. the thermal protection is asses- flammable environments. The
Other effects such as light, sound, sed. This standard is a derivative standard does not apply to mains
pressure, hot oil and metals and of ASTM 1959F applied in the US voltage.
electric shock, are not covered by and determinates the so-called
this standard. The standard does Arc Protective Performance Value The standard uses 2 material tests.
not apply to arc welding. (ATPV), expressed in cal/cm2. The At least one of the methods menti-
ATPV value is the value where the oned below must be obtained.
On the basis of applied current the wearer has a 50% chance of get-
standard recognizes 2 classes: ting second-degree burns. The Arc EN 1149-1: surface resistance
energy is always scaled up to 50% of • Surface resistivity ≤ 2.5 x 10^9 Â
• Class 1: 4 kA the measured values either below
• Class 2: 7 kA or above are the Stoll curve values. EN 1149-3: charge decay
Included in the newest version of • Shielding factor > 0.2 and/or
In addition to assessing the heat this standard is a more conservative • Half-life < 4 s
build-up, the standard also sets type of arc rating for materials cal-
requirements for flame protecti- led the Incident Energy Limit Value In addition to antistatic properties
on, mechanical strength, design (ELIM) this is also reported in cal/ of materials the standard also has
and provision of information (user cm2. The ELIM rating is the value design and information
manual). where the wearer is protected 100% requirements (user manual).
of the time.
Where an IEC 61482-2 garment is certified to the 2009
edition of the standard, the double triangle pictogram will
be displayed on the garment CE label and user information
document. When an IEC 61482-2 garment is certified to the
2020 edition of the standard, the arc flash pictogram will be
displayed on the garment CE label and user information
document. Ballyclare has included the arc flash pictogram
on the compliancy prints of our multinorm range to show
that the fabric has been tested to the requirements of EN
61482-1-1:2019 specifically for the ELIM rating. This can be
found listed below the Cal rating within each garment.
