Page 16 - Catalog PV

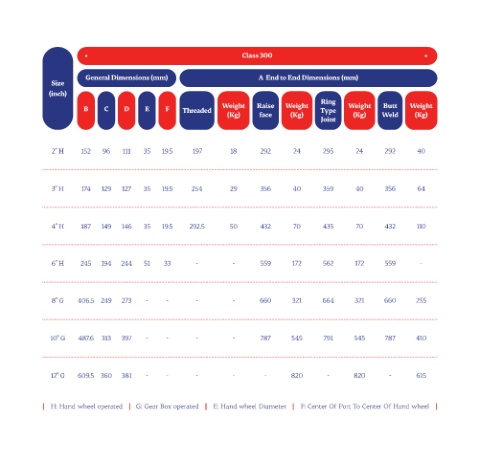

Class 300

General Dimensions (mm) A End to End Dimensions (mm)
Size
(inch)
Ring
B C D E F Threaded Weight Raise Weight Type Weight Butt Weight
(Kg) face (Kg) (Kg) Weld (Kg)
Joint

2’’ H 152 96 111 35 19.5 197 18 292 24 295 24 292 40

3’’ H 174 129 127 35 19.5 254 29 356 40 359 40 356 64

4’’ H 187 149 146 35 19.5 292.5 50 432 70 435 70 432 110

6’’ H 245 194 244 51 33 - - 559 172 562 172 559 -

8’’ G 406.5 249 273 - - - - 660 321 664 321 660 255

10'' G 487.6 313 397 - - - - 787 545 791 545 787 410

12'' G 609.5 360 381 - - - - - 820 - 820 - 615

| H: Hand wheel operated | G: Gear Box operated | E: Hand wheel Diameter | F: Center Of Port To Center Of Hand wheel |
