Page 19 - Catalog PV
P. 19

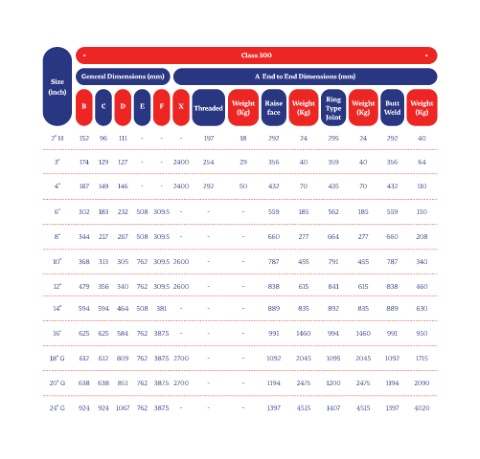

Class 300
General Dimensions (mm) A End to End Dimensions (mm)
Size
(inch)
Ring
B C D E F X Threaded Weight Raise Weight Type Weight Butt Weight
(Kg)
(Kg)
face
Joint (Kg) Weld (Kg)
2’’ H 152 96 111 - - - 197 18 292 24 295 24 292 40
3’’ 174 129 127 - - 2400 254 29 356 40 359 40 356 64
4’’ 187 149 146 - - 2400 292 50 432 70 435 70 432 110
6’’ 302 183 232 508 309.5 - - - 559 185 562 185 559 150
8’’ 344 217 267 508 309.5 - - - 660 277 664 277 660 208
10'' 368 313 305 762 309.5 2600 - - 787 455 791 455 787 340
12'' 479 356 340 762 309.5 2600 - - 838 615 841 615 838 460
14'' 594 594 464 508 381 - - - 889 835 892 835 889 630
16’’ 625 625 584 762 387.5 - - - 991 1460 994 1460 991 950
18'' G 612 612 809 762 387.5 2700 - - 1092 2045 1095 2045 1092 1715
20'' G 638 638 851 762 387.5 2700 - - 1194 2475 1200 2475 1194 2090
24'' G 924 924 1067 762 387.5 - - - 1397 4515 1407 4515 1397 4020
