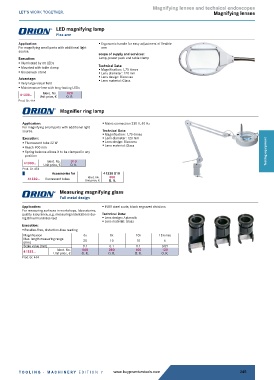

P. 245
Magnifying lenses and technical endoscopes
Magnifying lenses
LED magnifying lamp
Flex arm
Application: Ergonomic handle for easy adjustment of flexible
For magnifying small parts with additional light arm
source.
scope of supply and services:
Execution: Lamp, power pack and table clamp
Illuminated by 60 LEDs
Mounted with table clamp Technical Data:
Magnification: 1,75-times
Gooseneck stand Lens diameter: 170 mm
Advantage: Lens design: Biconvex
Lens material: Glass
Very large visual field
Maintenance-free with long-lasting LEDs
Ident. No.
020
41330... Unit price, € O. R.
Prod. Gr. 454
Magnifier ring lamp
Application: Mains connection 230 V, 50 Hz
For magnifying small parts with additional light
source. Technical Data:
Magnification: 1,75-times
Execution: Lens diameter: 120 mm
Fluorescent tube 22 W Lens design: Biconvex
Reach 900 mm Lens material: Glass
Spring balance allows it to be clamped in any Testing equipment
position
010
Ident. No.
41330... Unit price, € O. R.
Prod. Gr. 454
Accessories for 41330 010
500
Ident. No.
41330... Fluorescent tubes Unit price, € O. R.
Measuring magnifying glass
Full metal design
Application: INOX steel scale, black engraved divisions
For measuring surfaces in workshops, laboratories,
quality assurance, e.g. measuring indentations dur- Technical Data:
ing Brinell hardness test Lens design: Aplanatic
Lens material: Glass
Execution:
Parallax-free, distortion-free reading
Magnification 6x 8x 10x 12-times
Max. length measuring range 20 10 10 6
(mm)
Scale value (mm) 0.1 0.1 0.1 0.05
100
120
080
060
Ident. No.
41535... Unit price, € O. R. O. R. O. R. O. R.
Prod. Gr. 454
